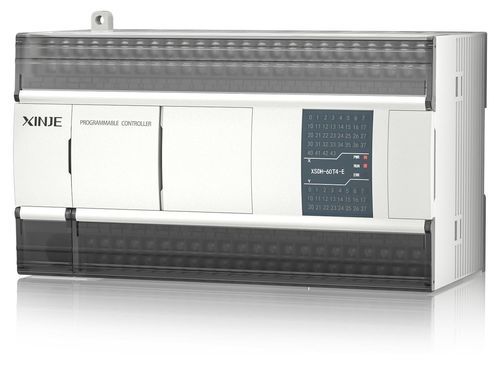

PLCopen motion controller XSDH series

32-axisEtherCATEthernet

Overview
Compact form factor with comprehensive control functions. Supports PLCopen programming specifications and can reference standard function libraries as well as host custom function blocks and instruction libraries. Supports EtherCAT motion control, EtherCAT remote I/O and Ethernet communication. Provides 32 electronic camshafts and online download capability.

Support CODESYS platform

• Powerful PLC software programming tool.
• Support for IEC 61131-3 standard.
• Extensive industry libraries and custom library development.
• Compatibility with most mainstream fieldbuses to ensure device-level communication.
• Provides HMI device data interfaces to enable data exchange between third-party clients and control systems.
• Supports OPC UA to enable cross-platform data transmission for smart factories and Industry 4.0.

Superior EtherCAT control function

• Rich communication equipment: Communicates with a wide range of EtherCAT-compliant devices including distributed I/O, servo drives, stepper drives and frequency converters.
• Multi-axis motion bus control: Supports multi-axis interpolation with linear, arc and spiral interpolation modes for common multi-axis platforms.
• Electronic cam: Replaces mechanical cams with electronic cam systems for improved machining accuracy and greater configuration flexibility; suitable for capping machines, pillow packaging machines and blow molding machines.

One stop control system

• Standard RJ45 Ethernet port for efficient network communication.
• Supports multiple industrial protocols: Modbus-TCP, TCP/IP, UDP, OPC UA, Ethernet/IP and tag-based communication.
• Flexible network topologies with support for line and star wiring for simplified cabling.

Additional Product Capabilities

• Support for PLCopen programming specifications and multiple standard function libraries.
• Online download functionality.
• 32 electronic camshafts supported.
• Support for EtherCAT motion control and EtherCAT remote I/O.
• HMI device data interfacing supported.

Specifications

• Model series: XSDH series
• Programming platform: CODESYS; supports IEC 61131-3
• PLCopen: Supported (reference standard libraries and develop custom libraries)
• Motion control: EtherCAT motion control; supports multi-axis interpolation (linear, arc, spiral)
• Communication: EtherCAT, EtherCAT remote I/O, Ethernet (RJ45)
• Protocols: Modbus-TCP, TCP/IP, UDP, OPC UA, Ethernet/IP, tag communication
• Electronic camshafts: 32 electronic camshafts
• Online download: Yes
• HMI interface: Provides HMI device data interface for third-party integration
• Typical applications: capping machines, pillow packaging machines, blow molding machines
