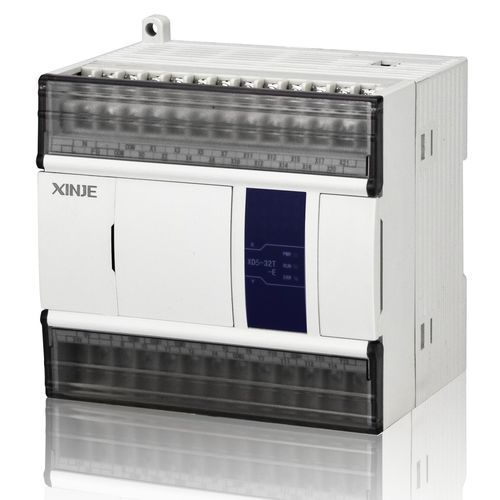

Enhanced PLC XD5 series

compactwith integrated I/Owith expandable I/O card

Overview
The XD5 series is a programmable logic controller that includes all standard PLC functions plus faster processing (approx. 15× vs. XC series), expanded internal resources and 2–10 channels of high-speed pulse output. It supports right-side expansion modules, BD expansion boards (not supported on 16-point models), left-side ED expansion modules and SD card storage expansion (except 16-point models), addressing a range of automation requirements.

Basic functions and configurations

• Program capacity: 512KB
• Basic instruction execution time: 0.02–0.05 µs
• Maximum I/O: 592 points
• I/O sequential control supported

High speed input and output

• 2–10 channels 100 kHz pulse outputs
• 3–10 channels high-speed counting (single-phase max 80 kHz, AB-phase max 50 kHz)

Communication function

• RS232
• RS485
• X-NET fieldbus
• USB high-speed download (up to 12 Mbps)

Technical specifications

• Program capacity: 512KB
• Basic instruction: 0.02–0.05 µs
• Maximum I/O points: 592
• I/O sequential control supported
• High-speed pulse outputs: 2–10 channels at 100 kHz
• High-speed counting: 3–10 channels (single-phase max 80 kHz, AB-phase max 50 kHz)
• Communication ports: RS232, RS485
• Fieldbus: X-NET
• USB high-speed download: up to 12 Mbps
• Processing speed: approx. 15× faster than XC series
• Expansion support: right expansion module, BD expansion board (not supported on 16-point models), left ED expansion module
• Storage expansion: SD card support (except 16-point models)
