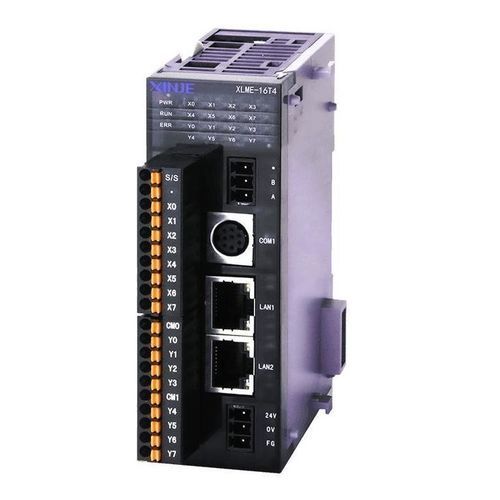

Ethernet PLC XLME series

card formatwith integrated I/Owith expandable I/O card

Overview
The XLME series is a motion-capable Ethernet controller designed for industrial automation requiring high-speed processing and multi-channel pulse outputs. It delivers faster instruction execution and larger internal resources compared with the XDM series, and supports left/right expansion modules for scalable I/O and motion architectures.

Key features

• Program capacity: 1 MB
• Processing speed: basic instruction 0.01–0.03 µs (≈2–3× XDM series)
• Max I/O: up to 576 points
• I/O sequential control supported
• Supports right and left expansion modules for system scalability

Motion control

• Linear interpolation and arc interpolation for multi-axis coordination
• Follow-up (tracking) function for cam and profile applications
• Up to 4–10 channel pulse outputs at 100 kHz
• High-speed counting: 4–10 channels (max 80 kHz single-phase; max 50 kHz AB phase)

Communications

• RS232 and RS485 serial ports
• 2 × RJ45 ports for Ethernet communication
• Supports Ethernet protocols and X-NET fieldbus integration

Typical applications

• Multi-axis motion systems (packaging, CNC indexing, labeling)
• Automated assembly and handling lines requiring precise pulse timing
• Machine building where expandable I/O and fieldbus connectivity are required

Technical specifications

• Series name: XLME series
• Program capacity: 1 MB
• Processing speed: approx. 2–3× XDM series (basic instruction 0.01–0.03 µs)
• Internal resource space: 1M
• Max I/O: 576 points
• I/O sequential control supported
• Motion features: linear interpolation, arc interpolation, follow-up function
• High-speed outputs: 4–10 channels 100 kHz pulse outputs
• High-speed counting: 4–10 channels (max 80 kHz single-phase; max 50 kHz AB phase)
• Communication ports: RS232, RS485, 2 × RJ45
• Supports Ethernet communication and X-NET fieldbus
• Supports right and left expansion modules
• Supports up to 10-channel pulse output
