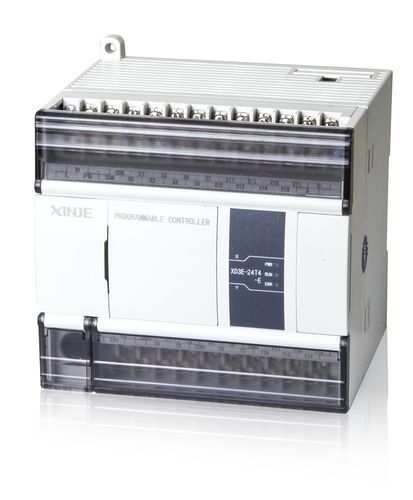

Compact PLC XD3 series

with integrated I/Owith expandable I/O cardpulse output

Product overview
The XD3 series standard controller delivers comprehensive control functions for industrial automation. Beyond core program and I/O data processing, it provides pulse output, high-speed counting, pulse-width modulation (PWM) and frequency measurement. The controller supports left expansion ED, expansion BD (16-point modules not supported) and right-side expansion modules to extend I/O and functionality.

Key features

• Basic functions and configurations: Program capacity 256KB; Basic instruction execution time 0.02 ~ 0.05 µs; Maximum I/O 380 points; Sequential I/O control.
• High-speed input and output: 2~4 channels up to 100 kHz pulse outputs (note: for XD3-24T4/32T4 the max pulse output frequency of Y2 and Y3 is limited to 20 kHz); 3 channels high-speed counting (max 80K single-phase; max 50K AB phase).
• Communication: RS232, RS485; X-NET fieldbus support.
• USB: High-speed USB download (up to 12 Mbps).

Related capabilities

• Supports left expansion ED modules.
• Supports expansion BD modules (note: 16-point modules are not supported).
• Supports right-side expansion modules to extend I/O and functions.

Technical specifications

• Series: XD3 series standard controller
• Program capacity: 256KB
• Basic instruction execution time: 0.02 ~ 0.05 µs
• Maximum I/O points: 380 points
• I/O control mode: Sequential control
• Pulse outputs: 2~4 channels up to 100 kHz (note: Y2 and Y3 for XD3-24T4/32T4 limited to 20 kHz)
• High-speed counting: 3 channels (max 80K single-phase; max 50K AB phase)
• Communication ports: RS232, RS485
• Fieldbus: X-NET
• USB: High-speed download up to 12 Mbps
• Expansion: Left expansion ED, expansion BD (16-point modules not supported), right-side expansion modules
