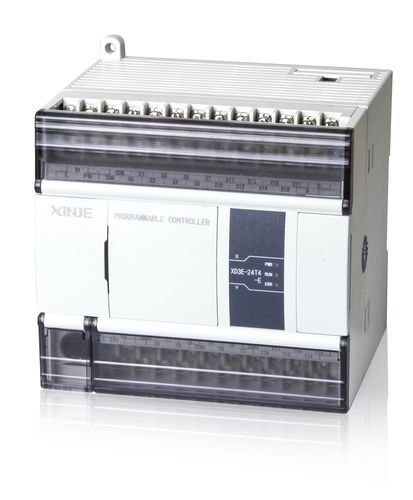

Ethernet PLC XD3E series

compactwith integrated I/Opulse output

Overview
Entry-level Ethernet controller offering stable performance to meet basic automation requirements. Includes functions of the XD3 series except SD card support. Improved processing speed compared with XD3 series. Supports RS232, RS485 and Ethernet communication, and connection to right expansion module, BD board and left expansion ED module.

Main features

• Basic functions and configurations
  • Program capacity: 256KB
  • Basic instruction time: 0.02~0.05us
  • Max I/O points: 572
  • I/O sequential control supported
• High speed input and output
  • 2CH 100KHz pulse outputs
  • 3CH high-speed counting (max 80K single-phase, max 50K AB phase)
• Communication function
  • RS232, RS485, RJ45
  • Ethernet communication supported
  • X-NET fieldbus

Caractéristiques / spécifications techniques

• Program capacity: 256KB
• Basic instruction time: 0.02~0.05us
• Maximum I/O points: 572
• I/O sequential control supported
• High-speed outputs: 2CH 100KHz pulse outputs
• High-speed counting: 3CH (max 80K single-phase, max 50K AB phase)
• Communication ports: RS232, RS485, RJ45
• Ethernet communication supported
• Fieldbus: X-NET
• Supports connection of right expansion module, BD board and left expansion ED module
• Does not include SD card function (compared with XD3 series)
• Faster processing speed compared with XD3 series
