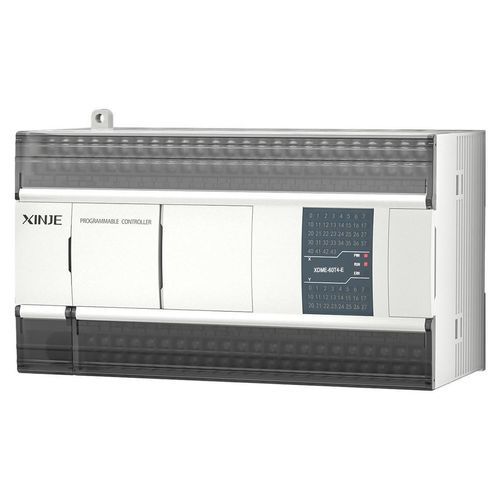

PLC with integrated motion controller XDME series

integratedEthernetRS485

Overview
In addition to all functions of the XDM series, the XDME series provides 2–3× faster processing speed, larger internal resource space, and supports connection of right expansion module, BD board and left expansion ED module.

Basic functions and configurations

• Program capacity: 1MB
• Basic instruction execution time: 0.01~0.03 µs
• Maximum I/O points: 572
• I/O sequential control supported

Motion control

• Linear interpolation and arc interpolation
• Follow-up function

High-speed input and output

• 4–10 channels 100 kHz pulse outputs
• 4–10 channels high-speed counting (single-phase up to 80 kHz, AB-phase up to 50 kHz)

Communication function

• RS232, RS485, RJ45 ports
• Ethernet communication
• X-NET fieldbus

Technical specifications

• Program capacity: 1MB
• Basic instruction time: 0.01~0.03 µs
• Maximum I/O points: 572
• I/O sequential control supported
• Motion control: linear interpolation, arc interpolation, follow-up
• High-speed pulse outputs: 4–10 channels at 100 kHz
• High-speed counting: 4–10 channels (single-phase up to 80 kHz, AB-phase up to 50 kHz)
• Communication ports: RS232, RS485, RJ45; supports Ethernet and X-NET fieldbus
