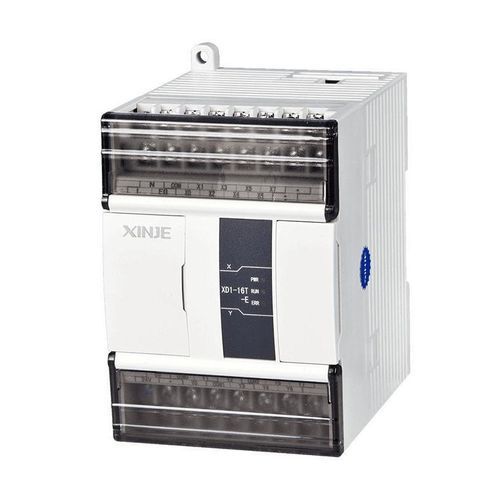

Compact PLC XD1 series

with integrated I/ORS485RS232

Overview
The XD1 series economy controller offers basic logic control and data-processing functions for simple automation tasks. It does not support right expansion modules, left expansion ED modules or expansion BD boards.

Key selling points
Fast execution speed and stable operation suitable for straightforward control applications.

Basic functions and configurations

• Program capacity: 256KB
• Basic instruction speed: 0.02~0.05 μs
• Maximum I/O: 32 points
• I/O sequential control supported

Communication function

• RS232
• RS485
• X-NET fieldbus

Specifications

• Series: XD1 series economy type controller
• Program capacity: 256KB
• Basic instruction speed: 0.02~0.05 μs
• Maximum I/O: 32 points
• Support for I/O sequential control
• Communication interfaces: RS232, RS485, X-NET fieldbus
• Does not support right expansion module, left expansion ED module or expansion BD board
