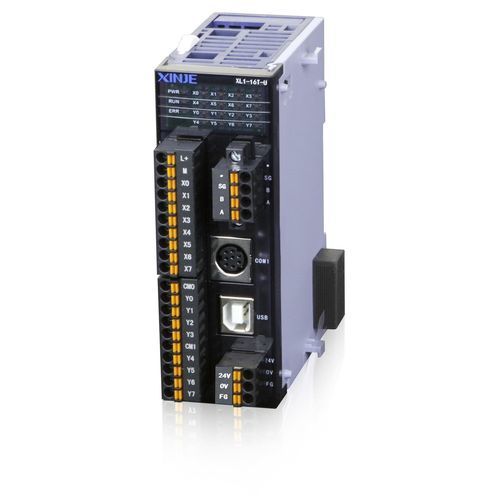

Card format PLC XL1 series

with integrated I/Opulse outputnetworked

Overview
Card-style, ultra-thin controller designed for simple control tasks. Supports basic logic control and data operations. The XL1 series includes RS232, RS485 and USB ports and supports X-NET fieldbus networking. Standalone design with no expansion; high-speed processing capability.

Basic functions and configurations

• Program capacity: 256 KB
• Basic instruction execution time: 0.02–0.05 µs
• Maximum I/O: 16 points
• Sequential I/O control supported

Communication functions

• RS232, RS485 ports
• X-NET fieldbus networking
• USB high-speed download (up to 12 Mbps)

Technical specifications

• Series/model: XL1 series
• Design: Card-style, ultra-thin
• Primary functions: Logic control and data operation
• Program capacity: 256 KB
• Basic instruction execution time: 0.02–0.05 µs
• Maximum I/O points: 16
• I/O control: Sequential I/O control
• Communication ports: RS232, RS485, USB
• Fieldbus support: X-NET
• USB speed: High-speed download up to 12 Mbps
• Expandability: No expansion (standalone controller)
• Processing: High-speed processing capability
