Enhanced PLC XL5 series

card formatwith integrated I/Opulse output

Overview

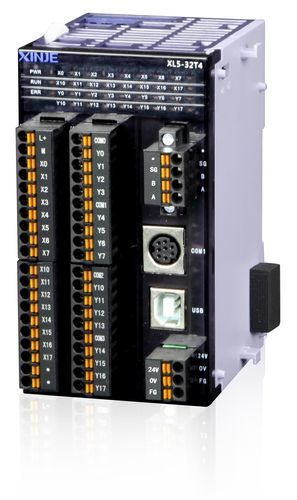

Card-style design that meets diverse industrial control requirements. In addition to standard PLC functions, the XL5 series delivers faster processing (approximately 15× XC series), expanded internal resource space, high-speed pulse outputs and flexible expansion options with right-side expansion modules and left-side ED modules.

Product Features

• Basic functions and configuration: Program capacity 512 KB; basic instruction execution 0.02–0.05 μs; max I/O 576 points; I/O sequential control.
• High-speed input and output: 2–10 CH 100 kHz pulse outputs (model dependent); 3–4 CH high-speed counting (up to 80 kHz single-phase, up to 50 kHz AB phase).
• Communication: RS232, RS485; X-NET fieldbus; USB port for high-speed download (up to 12 Mbps).

Technical specifications

• Program capacity: 512 KB
• Basic instruction: 0.02–0.05 μs
• Processing speed: ~15× XC series
• Internal resource space: expanded
• Max I/O: 576 points
• I/O sequential control
• High-speed pulse output: 2–4 channels (document also lists 2–10 CH 100 kHz)
• High-speed counting: 3–4 CH (max 80 kHz single-phase, max 50 kHz AB phase)
• Communication: RS232, RS485, X-NET fieldbus
• USB: high-speed download (max 12 Mbps)
• Expansion: supports right expansion module and left expansion ED module
