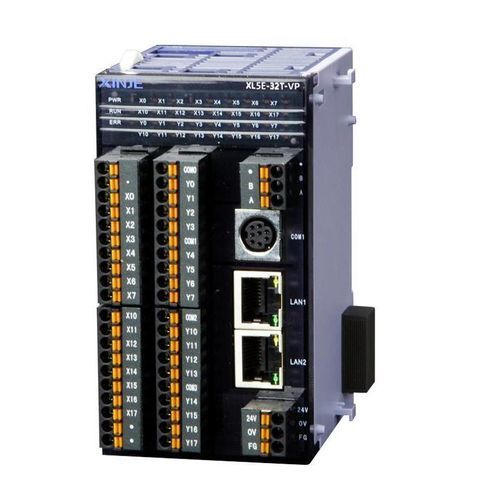

Ethernet PLC XL5E series

card formatwith integrated I/Owith expandable I/O card

Overview
The XL5E series enhanced Ethernet controller combines expanded internal resources and multi-port communications for industrial control applications. Compared with the XDM series it delivers approximately 2–3× faster processing and supports left/right expansion modules, multiple serial and Ethernet interfaces, and up to 10 pulse outputs.

Basic functions and configurations

• Program capacity: 1MB
• Basic instruction execution time: 0.01–0.03 μs
• Maximum I/O: 576 points
• I/O sequential control

High speed input and output

• Pulse outputs: 2–10 channels, up to 100 kHz
• High-speed counting: 3–10 channels (max 80K single-phase, max 50K AB phase)

Communication function

• RS232, RS485, RJ45 physical ports
• Ethernet communication
• X-NET fieldbus support

Characteristics / Technical specifications

• Series: XL5E series enhanced Ethernet controller
• Program capacity: 1MB
• Basic instruction time: 0.01–0.03 μs
• Max I/O points: 576
• Pulse output: 2–10 CH, 100 kHz
• High-speed counting: 3–10 CH (max 80K single-phase, max 50K AB phase)
• Communications: RS232, RS485, RJ45, Ethernet, X-NET fieldbus
• Supports connection of left and right expansion modules
