Motor adapter OHLA 210
SAE flangeshaftcantilevered load

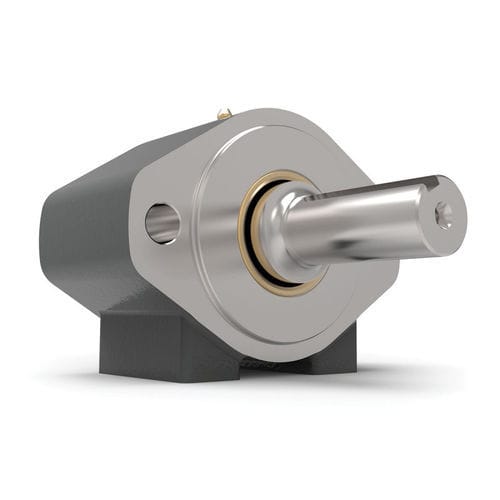

Motor adapter - OHLA 210 - ZERO-MAX Europe - SAE flange / shaft / cantilevered load
Motor adapter - OHLA 210 - ZERO-MAX Europe - SAE flange / shaft / cantilevered load
Motor adapter - OHLA 210 - ZERO-MAX Europe - SAE flange / shaft / cantilevered load - image - 2
Motor adapter - OHLA 210 - ZERO-MAX Europe - SAE flange / shaft / cantilevered load - image - 3
Motor adapter - OHLA 210 - ZERO-MAX Europe - SAE flange / shaft / cantilevered load - image - 4
Motor adapter - OHLA 210 - ZERO-MAX Europe - SAE flange / shaft / cantilevered load - image - 5
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Applications
for motors, SAE flange, shaft, cantilevered load

Description

Product overview
Overhung Load Adapters (OHLA) series 210 feature an output-side shaft connection for direct coupling. They use the SAE A mounting standard and support front (face) and bottom mounting. The OHLA 210 compensates radial and axial (overhung) loads and includes an internal contamination barrier for reliable operation. Optional configurations include a deep-pilot version and gear profiles to ANSI B92.1.

Key features
  • SAE A (2-bolt) mounting
  • Deep groove ball bearings
  • Face and bottom mounting positions
  • Maximum operating speed up to 3800 rpm
  • Adapter versions available for DIN, ISO, IEC or NEMA motor connections
  • Mounting base for motor or pump installation

Technical specifications
  • Model: OHLA series 210
  • Output: shaft connection for direct coupling
  • Mounting standard: SAE A (2-bolt)
  • Mounting positions: front (face) and bottom
  • Load compensation: radial and axial (overhung) loads
  • Sealing: internal contamination barrier
  • Bearings: deep groove ball bearings
  • Options: deep-pilot version; gear profiles per ANSI B92.1
  • Adapter connections: versions for DIN/ISO/IEC/NEMA motors
  • Maximum operating speed: up to 3800 rpm
