Axial bearing unit OHLA series 512radialmonoblocball bearing
Add to favorites
Compare this product
Characteristics
- Type
- axial, radial, monobloc
- Rolling element
- ball bearing, roller
- Material
- steel, cast iron
- Other characteristics
- housed, high-performance, lubricated, compact, economical, maintenance-free, pre-lubracted, dust-resistant, round-flange
- Applications
- for agricultural applications, for heavy loads, for heavy-duty applications, HVAC, for motors, for pump, for compressors
Description
Overview

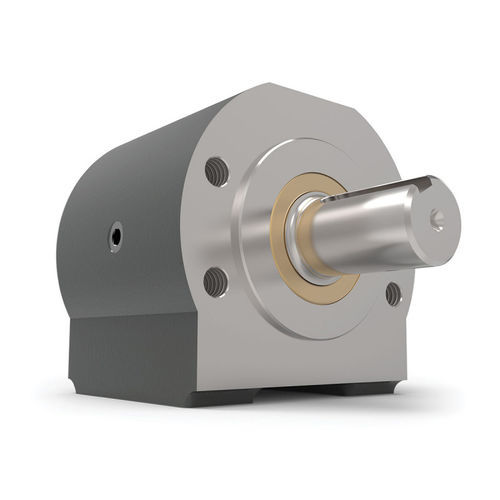

Overhung Load Adaptors (OHLA) Series 512 provide an output-side shaft connection for direct coupling. They conform to the SAE A mounting standard and can be installed on the face or underside. OHLA units compensate radial and axial loads and maintain smooth operation with an internal contamination barrier.
Key features
Technical specifications
Overhung Load Adaptors (OHLA) Series 512 provide an output-side shaft connection for direct coupling. They conform to the SAE A mounting standard and can be installed on the face or underside. OHLA units compensate radial and axial loads and maintain smooth operation with an internal contamination barrier.
Key features
- SAE A (2-bolt or 4-bolt mounting)
- Protection against radial and axial loads
- Input-side gear profile options available
- Heavy-duty tapered roller bearings
- Operating speed up to 2300 rpm
- Versions with adapter connections for DIN, ISO, IEC or NEMA motors
Technical specifications
- Product type: Overhung Load Adapter (OHLA)
- Series / Model: 512
- Output shaft connection for direct coupling
- Mounting standard: SAE A (2-bolt or 4-bolt)
- Mounting orientations: face and bottom
- Function: compensate and protect against radial and axial loads
- Sealing: internal contamination barrier
- Input: gear profile options available
- Bearings: heavy-duty tapered roller bearings
- Maximum operating speed: up to 2300 rpm
- Adapter interfaces available: DIN, ISO, IEC, NEMA
Catalogs
No catalogs are available for this product.
See all of ZERO-MAX Europe‘s catalogsOther ZERO-MAX Europe products
OHLA Overhung Load Adaptors
