Radial bearing unit OHLA 312with ball bearingcast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- with ball bearing
- Material
- cast iron, steel
- Other characteristics
- grease lubricated, rugged
- Applications
- for conveyor, for agricultural applications, for heavy loads, for motors, for pump
Description
Product overview

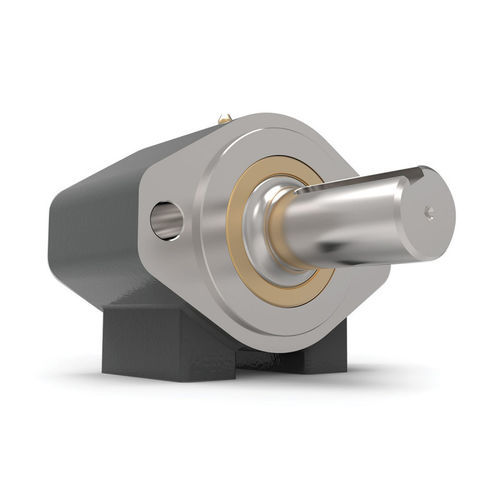

Overhung Load Adapters (OHLA) Series 312 provide a shaft connection on the output side for direct coupling. Designed for SAE A (2-bolt) mounting, they can be installed on the face or bottom side. Series 312 compensates radial and axial loads and includes an internal contamination barrier for smooth operation. Models with the deep‑pilot option are available.
Key features
Additional information
Technical specifications
Overhung Load Adapters (OHLA) Series 312 provide a shaft connection on the output side for direct coupling. Designed for SAE A (2-bolt) mounting, they can be installed on the face or bottom side. Series 312 compensates radial and axial loads and includes an internal contamination barrier for smooth operation. Models with the deep‑pilot option are available.
Key features
- SAE A (2-bolt) mounting standard
- Compensation of radial and axial loads
- Heavy-duty deep groove ball bearings
- Maximum operating speed up to 3100 rpm
- Adapter connections available for DIN, ISO, IEC or NEMA motors
- Reduces downtime and maintenance costs
Additional information
- Output: shaft connection for direct coupling
- Mounting positions: face and bottom
- Internal contamination barrier for reliable operation
- Optional deep-pilot models available
Technical specifications
- Mounting standard: SAE A (2-bolt)
- Output connection: shaft for direct coupling
- Load protection: radial and axial load compensation
- Bearings: heavy-duty deep groove ball bearings
- Maximum operating speed: up to 3100 rpm
- Adapter connections: DIN, ISO, IEC, NEMA available
- Internal contamination barrier: yes
- Options: deep-pilot models
- Benefit: reduces downtime and maintenance costs
