Radial bearing unit OHLA 815tapered rollercast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- tapered roller
- Material
- cast iron, steel
- Other characteristics
- grease lubricated, rugged
- Applications
- for conveyor, for agricultural applications, for heavy loads, for motors, for pump
Description
Overview

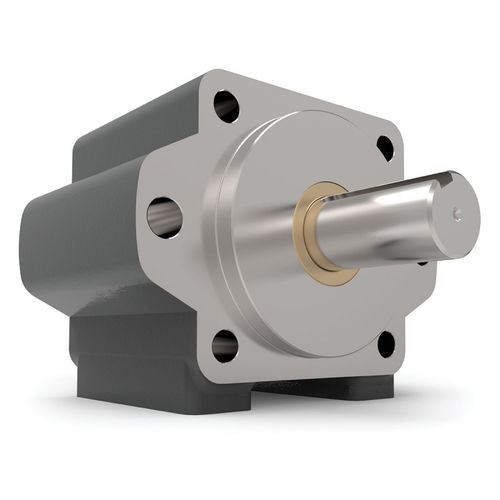

OHLA Overhung Load Adaptors Series 815 provide an output-side shaft connection for direct coupling. Units support face and bottom mounting and conform to SAE B and SAE C mounting standards. The adaptor compensates radial and axial (overhung) loads and includes an internal contamination barrier to protect internal components.
Features
Technical specifications
Available documents
OHLA Overhung Load Adaptors Series 815 provide an output-side shaft connection for direct coupling. Units support face and bottom mounting and conform to SAE B and SAE C mounting standards. The adaptor compensates radial and axial (overhung) loads and includes an internal contamination barrier to protect internal components.
Features
- SAE C (2-bolt or 4-bolt mounting options)
- Protection against radial and axial loads
- Input-side gear profiles available
- Heavy-duty tapered roller bearings
- Operating speed up to 2300 rpm
- Double-lip seal with garter spring
Technical specifications
- Product family: OHLA Series 815
- Shaft connection on the output side for direct coupling
- Mounting: SAE B / SAE C standard options; face and bottom mounting positions
- Function: compensates radial and axial (overhung) loads
- Internal contamination barrier to protect internal components
- Bearings: heavy-duty tapered roller bearings for load handling
- Available input-side gear profiles
- Maximum operating speed: up to 2300 rpm
- Sealing: double-lip seal with garter spring
Available documents
- Datasheet (product data sheet)
- CAD files (download available)
- Catalog (OHLA catalog)
