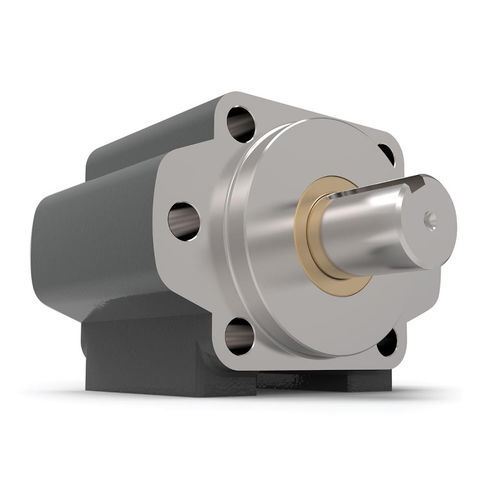

Radial bearing unit OHLA 615with ball bearingcast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- with ball bearing
- Material
- cast iron, steel
- Other characteristics
- grease lubricated, rugged
- Applications
- for conveyor, for agricultural applications, for heavy loads, for motors, for pump
Description
Product overview
Overhung Load Adaptors (OHLA) Series 615 provide an output‑side shaft connection for direct coupling. Designed for SAE B mounting, they can be fitted on the face or bottom side. The OHLA 615 compensates radial and axial loads and ensures smooth operation with an internal contamination barrier.
Key features
Design & mounting
Supplied with an output‑side shaft connection to allow direct shaft coupling. Mounting follows the SAE B standard and permits installation on the face or bottom side. Mounting options include 2‑bolt or 4‑bolt SAE B configurations.
Typical functions
Serves as an overhung/outrigger bearing adapter to protect hydraulic systems and driveline components by taking axial and radial loads while enabling direct shaft connection and reliable operation.
Technical specifications
Overhung Load Adaptors (OHLA) Series 615 provide an output‑side shaft connection for direct coupling. Designed for SAE B mounting, they can be fitted on the face or bottom side. The OHLA 615 compensates radial and axial loads and ensures smooth operation with an internal contamination barrier.
Key features
- SAE B (2‑bolt or 4‑bolt mounting)
- Protection against radial and axial loads
- Input‑side gear profiles available
- Heavy‑duty tapered roller bearings
- Operating speed up to 2300 rpm
- Double‑lip seal with garter spring (internal contamination barrier)
Design & mounting
Supplied with an output‑side shaft connection to allow direct shaft coupling. Mounting follows the SAE B standard and permits installation on the face or bottom side. Mounting options include 2‑bolt or 4‑bolt SAE B configurations.
Typical functions
Serves as an overhung/outrigger bearing adapter to protect hydraulic systems and driveline components by taking axial and radial loads while enabling direct shaft connection and reliable operation.
Technical specifications
- Series / model: OHLA Series 615
- Mounting standard: SAE B (2‑bolt or 4‑bolt)
- Mounting positions: face and bottom side
- Load protection: radial and axial
- Bearing type: heavy‑duty tapered roller bearings
- Seal: double‑lip seal with garter spring (internal contamination barrier)
- Output: shaft connection on output side for direct coupling
- Maximum operating speed: up to 2300 rpm
- Input options: various gear profiles available on input side
