Radial bearing unit OHLA 1136tapered rollercast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- tapered roller
- Material
- cast iron, steel
- Other characteristics
- grease lubricated, rugged
- Applications
- for conveyor, for agricultural applications, for heavy loads, for motors, for pump
Description
Product description

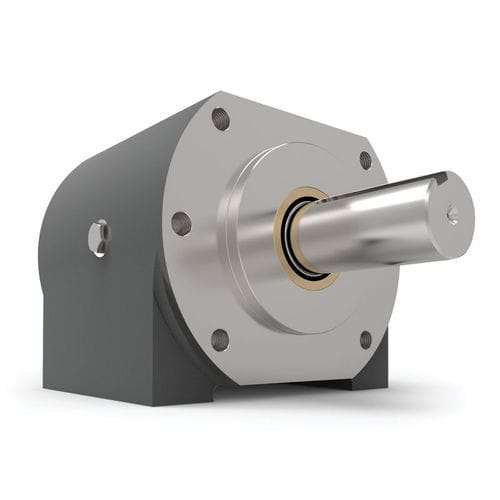

Overhung Load Adaptors (OHLA) Series 1136 feature an output shaft connection for direct coupling. They are mounted to the SAE D mounting standard and can be installed on the face or bottom side. OHLA adaptors compensate radial and axial loads and ensure smooth operation thanks to an internal contamination barrier.
Key features
Additional information
Technical specifications
Overhung Load Adaptors (OHLA) Series 1136 feature an output shaft connection for direct coupling. They are mounted to the SAE D mounting standard and can be installed on the face or bottom side. OHLA adaptors compensate radial and axial loads and ensure smooth operation thanks to an internal contamination barrier.
Key features
- SAE D mounting (also available in SAE C 2-bolt or 4-bolt options)
- Protection against radial and axial loads
- Heavy-duty tapered roller bearings
- Operating speed up to 2500 rpm
- Double-lip seal with garter spring
- Reduces downtime and maintenance costs
Additional information
- Output shaft connection for direct coupling
- Can be mounted on face and bottom sides
- Internal contamination barrier for smooth operation
- CAD downloads redirect to the Zero-Max USA website
Technical specifications
- Model family: OHLA Series 1136
- Mounting standard: SAE D (SAE C 2-bolt or 4-bolt options referenced)
- Load protection: radial and axial
- Bearings: heavy-duty tapered roller bearings
- Seal: double-lip seal with garter spring
- Maximum operating speed: up to 2500 rpm
- Output: shaft connection for direct coupling
- Mounting orientation: face and bottom side
- Benefit: reduces downtime and maintenance costs
