Radial bearing unit OHLA 950spherical rollercast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- spherical roller
- Material
- cast iron, steel
- Other characteristics
- high-performance, grease lubricated, rugged
- Applications
- for conveyor, for heavy-duty applications, for agricultural applications, for heavy loads, for motors, for pump
Description
Product description

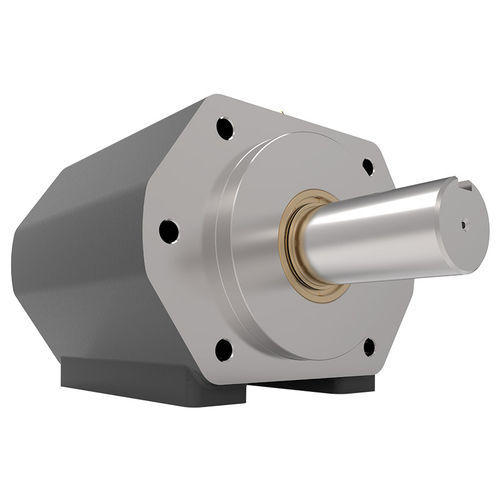

The OHLA Series 950 overhung load adapter (radial load receptor) is equipped with spherical roller bearings and a shaft output for direct coupling. It is designed for SAE C mounting standard (2-bolt or 4-bolt) and can be installed on the face or the bottom side. The adapter compensates radial and axial (overhung) loads and ensures reliable operation thanks to an internal contamination barrier.
Key features
Technical specifications
The OHLA Series 950 overhung load adapter (radial load receptor) is equipped with spherical roller bearings and a shaft output for direct coupling. It is designed for SAE C mounting standard (2-bolt or 4-bolt) and can be installed on the face or the bottom side. The adapter compensates radial and axial (overhung) loads and ensures reliable operation thanks to an internal contamination barrier.
Key features
- Extended housing and heat-treated shafts
- Double primary seal on the output side
- Input-side spline profile for secure coupling
- High-performance sealing system
- Operating speed up to 2500 rpm
- Available versions with adapter connections for DIN, ISO, IEC or NEMA motors
Technical specifications
- Series / model: OHLA Series 950
- Bearings: spherical roller bearings
- Output connection: shaft output for direct coupling
- Mounting standard: SAE C (2-bolt or 4-bolt); face or bottom mounting
- Load compensation: compensates radial and axial (overhung) loads
- Contamination protection: internal contamination barrier
- Sealing: double primary seal on output side; high-performance sealing system
- Housing & shafts: extended housing; heat-treated shafts
- Input: spline profile on input side
- Max operating speed: up to 2500 rpm
- Alternate versions: adapter connections available for DIN, ISO, IEC or NEMA motors
