Radial bearing unit OHLA 928Mtapered rollercast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- tapered roller
- Material
- cast iron, steel
- Other characteristics
- grease lubricated, rugged
- Applications
- for conveyor, for agricultural applications, for heavy loads, for motors, for pump
Description
Product Overview

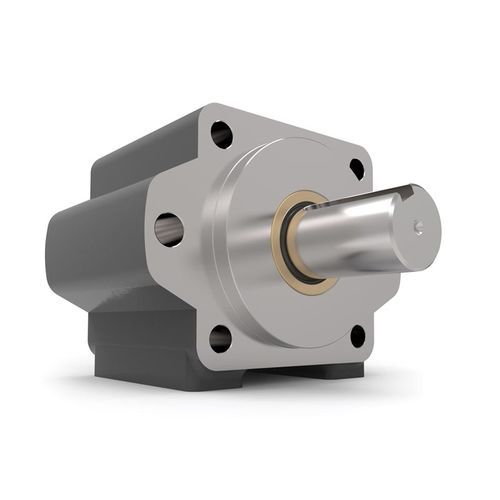

Overhung Load Adaptors (OHLA) series 928M provide a sealed shaft connection on both sides. They are designed for SAE C mounting and can be installed on the face or bottom side. The adapters compensate radial and axial loads while an internal contamination barrier ensures smooth operation.
Features
Mounting and Operation
Can be mounted on the face or bottom side. Provides a sealed shaft connection on both sides and an internal contamination barrier to protect bearings and maintain reliable operation while compensating radial and axial loads.
Characteristics / Technical specifications
Overhung Load Adaptors (OHLA) series 928M provide a sealed shaft connection on both sides. They are designed for SAE C mounting and can be installed on the face or bottom side. The adapters compensate radial and axial loads while an internal contamination barrier ensures smooth operation.
Features
- SAE C (2-bolt or 4-bolt mounting)
- Heavy-duty tapered roller bearings
- Input and output shafts sealed on both sides
- Operating speed up to 1900 rpm
- Other versions with adapter connection for DIN, ISO, IEC or NEMA motors
- Additional connection variants available on request
Mounting and Operation
Can be mounted on the face or bottom side. Provides a sealed shaft connection on both sides and an internal contamination barrier to protect bearings and maintain reliable operation while compensating radial and axial loads.
Characteristics / Technical specifications
- Type: Overhung Load Adapter / Radial Load Adapter
- Series / Model: OHLA 928M
- Mounting standard: SAE C (2- or 4-bolt)
- Bearing type: Heavy-duty tapered roller bearings
- Shaft sealing: Input and output shafts sealed on both sides
- Maximum operating speed: up to 1900 rpm
- Mounting positions: face and bottom side
- Protection: Internal contamination barrier
- Options: Adapter connections for DIN, ISO, IEC or NEMA motors; other attachment variants on request
