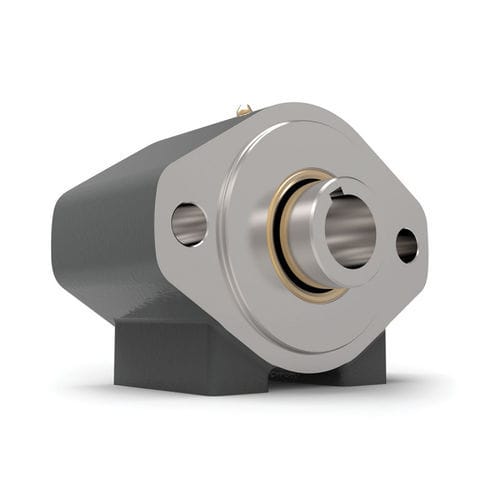

Radial bearing unit OHLA 210Fwith ball bearingcast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- with ball bearing
- Material
- cast iron, steel
- Other characteristics
- grease lubricated, rugged
- Applications
- for agricultural applications, for heavy loads, for motors, for pump, for conveyor
Description
Product description
Overhung Load Adaptors (OHLA) series 210F are provided with a shaft extension on the output side. They follow the SAE A mounting standard and can be mounted on the face or bottom side. Radial load transducers compensate for radial and axial loads and ensure stable operation via an internal contamination barrier. Additional models with the 'deep pilot' option are available.
Key features
Mounting & compatibility
Mountable on face or bottom side. Compliant with SAE A mounting standard; adapter variants are offered to match DIN, ISO, IEC or NEMA motor connections.
Documentation
Datasheet and catalog are available for the OHLA 210F series.
Technical specifications
Overhung Load Adaptors (OHLA) series 210F are provided with a shaft extension on the output side. They follow the SAE A mounting standard and can be mounted on the face or bottom side. Radial load transducers compensate for radial and axial loads and ensure stable operation via an internal contamination barrier. Additional models with the 'deep pilot' option are available.
Key features
- SAE A (2-bolt mounting)
- Through bore for input and output
- Protection against radial and axial loads
- Extended shaft connection on output side
- Operating speed up to 3800 rpm
- Versions with adapter connection for DIN, ISO, IEC or NEMA motors available
- Internal contamination barrier for smooth operation
- Optional 'deep pilot' models available
Mounting & compatibility
Mountable on face or bottom side. Compliant with SAE A mounting standard; adapter variants are offered to match DIN, ISO, IEC or NEMA motor connections.
Documentation
Datasheet and catalog are available for the OHLA 210F series.
Technical specifications
- Model family: OHLA series 210F
- Mounting standard: SAE A (2-bolt)
- Shaft: extended output-side shaft extension
- Bores: through bore for input and output
- Load protection: radial and axial load compensation (radial load transducers)
- Protection feature: internal contamination barrier
- Maximum operating speed: up to 3800 rpm
- Mounting positions: face or bottom
- Options: 'deep pilot' option; adapter connections for DIN/ISO/IEC/NEMA motors
