Radial bearing unit OHLA 915tapered rollercast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- tapered roller
- Material
- cast iron, steel
- Other characteristics
- rugged, grease lubricated
- Applications
- for conveyor, for agricultural applications, for heavy loads, for motors, for pump
Description
Product overview

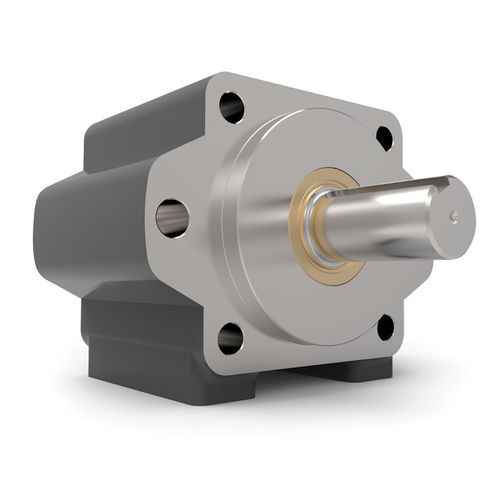

Overhung Load Adapter OHLA Series 915 is designed to receive radial and axial loads on hydraulic drive outputs. The unit provides a direct shaft connection on the output side and supports SAE B and SAE C mounting patterns for face and bottom or 2‑/4‑bolt configurations.
Features
Additional information
The adapter is suitable for installation on the drive face or underside depending on the chosen SAE pattern. Internal contamination barrier and double‑lip sealing reduce ingress and preserve bearing life. Input gear profiles are available as options for specific drive interfaces.
Technical specifications
Overhung Load Adapter OHLA Series 915 is designed to receive radial and axial loads on hydraulic drive outputs. The unit provides a direct shaft connection on the output side and supports SAE B and SAE C mounting patterns for face and bottom or 2‑/4‑bolt configurations.
Features
- Mounting: SAE B (face and bottom) and SAE C (2‑bolt or 4‑bolt) as applicable
- Compensation of radial and axial loads for hydraulic systems
- Output-side shaft connection for direct coupling
- Heavy‑duty tapered roller bearings for load capacity
- Double‑lip seal with garter spring and internal contamination barrier
- Rated operating speed up to 1900 rpm
Additional information
The adapter is suitable for installation on the drive face or underside depending on the chosen SAE pattern. Internal contamination barrier and double‑lip sealing reduce ingress and preserve bearing life. Input gear profiles are available as options for specific drive interfaces.
Technical specifications
- Model family: OHLA Series 915
- Function: overhung load receptor for hydraulic systems; compensates radial and axial loads
- Mounting standards: SAE B (face/bottom) and SAE C (2‑ or 4‑bolt)
- Output: shaft connection for direct coupling
- Bearings: heavy‑duty tapered roller bearings
- Sealing: double‑lip seal with garter spring; internal contamination barrier
- Input: gear profiles available
- Maximum operating speed: up to 1900 rpm
