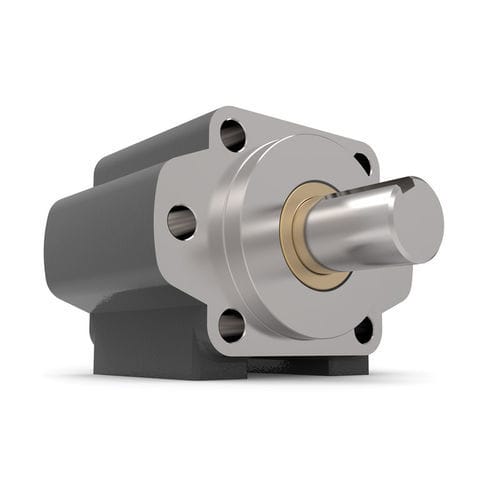

Radial bearing unit OHLA 615Mtapered rollercast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- tapered roller
- Material
- cast iron, steel
- Other characteristics
- grease lubricated, rugged
- Applications
- for conveyor, for agricultural applications, for heavy loads, for motors, for pump
Description
Overview
Overhung Load Adapter (OHLA) series 615M provides a sealed shaft connection on both input and output sides. The unit is designed for SAE B mounting (2-bolt or 4-bolt) and can be installed on the face or bottom side of the driver. It compensates radial and axial loads and includes an internal contamination barrier to protect drivetrain components and maintain smooth operation.
Key features
Function / Application
Provides outrigger/overhung bearing support to protect electric motors, gearboxes and drive systems from radial and axial loads. Typical applications include pumps, fans, conveyors and other driven equipment where shaft sealing and load isolation extend component life and reduce maintenance.
Technical specifications
Overhung Load Adapter (OHLA) series 615M provides a sealed shaft connection on both input and output sides. The unit is designed for SAE B mounting (2-bolt or 4-bolt) and can be installed on the face or bottom side of the driver. It compensates radial and axial loads and includes an internal contamination barrier to protect drivetrain components and maintain smooth operation.
Key features
- SAE B mounting (2-bolt or 4-bolt)
- Heavy-duty tapered roller bearings
- Input and output shafts sealed on both sides
- Operating speed up to 2300 rpm
- Versions available with adapter connection for DIN, ISO, IEC or NEMA motors
- Additional connection variants available on request
Function / Application
Provides outrigger/overhung bearing support to protect electric motors, gearboxes and drive systems from radial and axial loads. Typical applications include pumps, fans, conveyors and other driven equipment where shaft sealing and load isolation extend component life and reduce maintenance.
Technical specifications
- Model/series: OHLA 615M
- Mounting standard: SAE B (2-bolt or 4-bolt)
- Bearing type: heavy-duty tapered roller bearings
- Shaft sealing: sealed on both input and output sides
- Supported loads: compensation/protection for radial and axial loads
- Maximum operating speed: up to 2300 rpm
- Mounting orientation: face and bottom side capable
- Adapter connections available: DIN, ISO, IEC, NEMA (other variants on request)
- Internal contamination barrier for improved lifetime and smooth operation
Catalogs
No catalogs are available for this product.
See all of ZERO-MAX Europe‘s catalogsOther ZERO-MAX Europe products
OHLA Overhung Load Adaptors
