Flange adapter OHLA 212k
SAE flangecantilevered loadfor motors

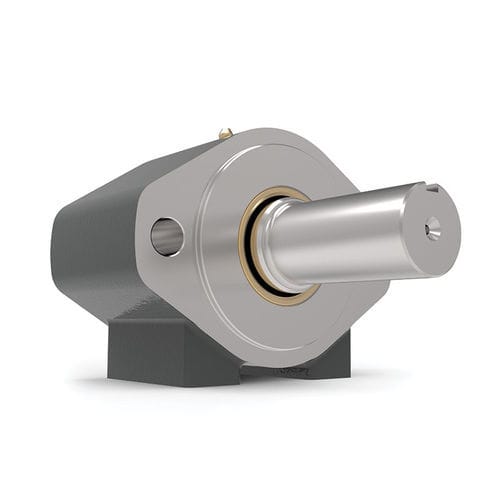

Flange adapter - OHLA 212k - ZERO-MAX Europe - SAE flange / cantilevered load / for motors
Flange adapter - OHLA 212k - ZERO-MAX Europe - SAE flange / cantilevered load / for motors
Flange adapter - OHLA 212k - ZERO-MAX Europe - SAE flange / cantilevered load / for motors - image - 2
Flange adapter - OHLA 212k - ZERO-MAX Europe - SAE flange / cantilevered load / for motors - image - 3
Flange adapter - OHLA 212k - ZERO-MAX Europe - SAE flange / cantilevered load / for motors - image - 4
Flange adapter - OHLA 212k - ZERO-MAX Europe - SAE flange / cantilevered load / for motors - image - 5
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Connector type
flange
Applications
SAE flange, shaft, for motors, cantilevered load

Description

Product description
Overhung Load Adaptors (OHLA) series 212k provide an output-side shaft connection for direct connection. They are mounted using the SAE A (2-bolt) mounting standard and can be mounted on the face (front) and the bottom. OHLA 212k adaptors compensate radial and axial (overhung) loads and deliver smooth operation using an internal contamination barrier. Additional options include a deep pilot version and gear profiles (ANSI B92.1).

Key features
  • SAE A (2-bolt) mounting
  • Shaft connection on output side for direct connection
  • Deep groove ball bearings used
  • Face and bottom mounting possible
  • Compensation of radial and axial loads
  • Internal contamination barrier for smooth operation
  • Operating speed up to 3800 rpm
  • Available versions with adapter connections for DIN, ISO, IEC or NEMA motors
  • Robust mounting base for motor or pump
  • Additional models with deep pilot option and ANSI B92.1 gear profiles


Technical specifications
  • Mounting standard: SAE A (2-bolt)
  • Bearing type: deep groove ball bearings
  • Mounting orientations: face (front) and bottom
  • Maximum operating speed: up to 3800 rpm
  • Load compensation: axial and radial (overhung loads)
  • Contamination protection: internal contamination barrier
  • Adapter connection options: DIN, ISO, IEC or NEMA motor adapters available
  • Optional features: deep pilot option; ANSI B92.1 gear profiles
