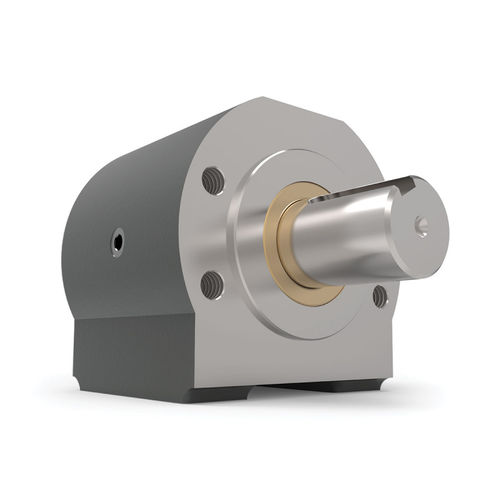

Radial bearing unit OHLA 515tapered rollercast ironsteel
Add to favorites
Compare this product
Characteristics
- Type
- radial
- Rolling element
- tapered roller
- Material
- cast iron, steel
- Other characteristics
- grease lubricated, rugged
- Applications
- for conveyor, for agricultural applications, for heavy loads, for motors, for pump
Description
Product overview Overhung Load Adaptors (OHLA) Series 515 feature an output-side shaft connection for direct coupling. They comply with the SAE A mounting standard and can be mounted on the face or bottom side. OHLA adaptors compensate radial and axial loads and ensure smooth operation with an internal contamination barrier.
Features
Technical specifications
Features
- SAE A (supports 2-bolt or 4-bolt mounting)
- Compensation of radial and axial loads
- Various input-side gear profile options
- Heavy-duty tapered roller bearings
- Operating speed up to 2300 rpm
- Versions with adapter interfaces for DIN, ISO, IEC or NEMA motors available
Technical specifications
- Series: OHLA 515
- Output: shaft connection for direct coupling
- Mounting standard: SAE A (2- or 4-bolt)
- Mounting positions: face and bottom side
- Function: compensates radial and axial loads
- Contamination protection: internal barrier for smooth operation
- Input options: multiple gear profile choices
- Bearings: heavy-duty tapered roller bearings
- Maximum operating speed: up to 2300 rpm
- Adapter interfaces available: DIN, ISO, IEC or NEMA motor connections
