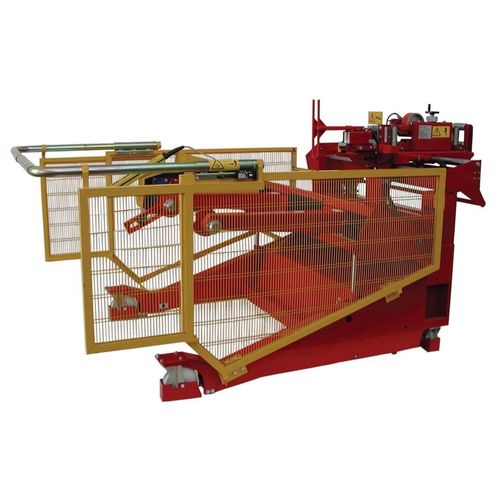

Coil winder CD-100/M3/BM series
motorized

coil winder
coil winder
coil winder
Add to favorites
Compare this product


Characteristics

Product application
coil
Other characteristics
motorized

Description

Weight capacity 1000 kg - Drums min. Ø 800mm max. Ø 3000mm LOW PERFORMANCE - max. 20 operations a day on average Lifting arms CE-approved safety guards fitted for protection. Electro-hydraulic lifting. VULKOLLAN wheels (two wheels and two castors). Electro-hydraulic parking jacks. AC variable-speed winding unit, continuous speed adjustment 0-50 rpm. Supply voltage 380 V three phase (to be confirmed at order stage) Machine height (mm) - 1800 mm Machine width (mm) - 2990 mm Machine length (mm) - 3500 mm Length with guards on (mm) - 4380 mm Empty weight (kg) - 2200 kg Drums - maximum diameter (mm) - 3000 mm Drums - minimum diameter (mm) - 800 mm Drums - Maximum width (mm) - 2000 mm Drums - Minimum width (mm) - 490 mm Drums- Max. weight capacity (kg) - 10000 kg Total power (kW) - 10 KW Torque - 2400 Nm Machine movement speed - 4 kw Min./max. rpm (rpm at drum) - 0-50 g/min

Catalogs

No catalogs are available for this product.

See all of MECCANICA NICOLETTI‘s catalogs

Other MECCANICA NICOLETTI products

CABLE WINDING AND PAYOFF MACHINERY
