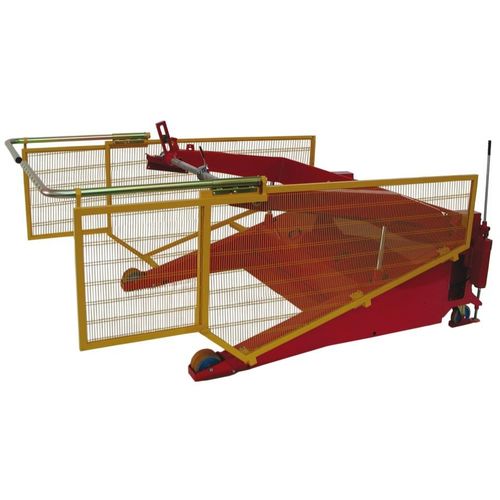

Cable drum unwinder CD-100
with shaftfor heavy loads

Cable drum unwinder - CD-100 - MECCANICA NICOLETTI - with shaft / for heavy loads
Cable drum unwinder - CD-100 - MECCANICA NICOLETTI - with shaft / for heavy loads
Add to favorites
Compare this product
Go to the MECCANICA NICOLETTI website for more information

Characteristics

Type
cable drum
Other characteristics
with shaft, for heavy loads
Roll diameter

Max.: 3,000 mm
(118.11 in)

Min.: 800 mm
(31.5 in)

Description

max. 20 operations a day CE-approved safety guards fitted for protection. Manual pump hydraulic lifting. VULKOLLAN wheels. (two wheels and two castors). Manual front parking jacks. Rack-operated drum locking shaft Supply voltage 380 V three phase (to be confirmed at order stage) Machine height (mm) - 1400 mm Machine width (mm) - 2600 mm Machine length (mm) - 3080 mm Length with guards on (mm) - 3700 mm Empty weight (kg) - 700 kg Drums - Maximum width (mm) - 2000 mm Drums - Minimum width (mm) - 300 mm Drums- Max. weight capacity (kg) - 10000 kg Total power (kW) - 3.0 KW Machine movement speed - 4 km/h
