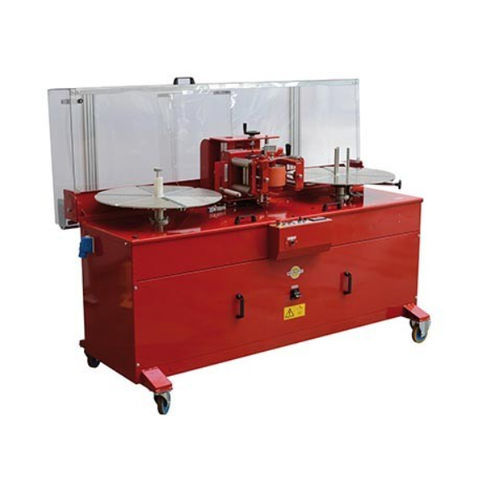

Automatic coiler AV-SVOAUT-500-80
cablecoilwith length measuring device

automatic coiler
automatic coiler
Add to favorites
Compare this product


Characteristics

Operation
automatic
Applications
cable, coil
Other characteristics
with length measuring device

Description

AUTOMATIC COILER FOR CABLE UP TO Ø100 For high workloads Automatic coiler/uncoiler for flat cable Sheet steel construction, stove enamelled. Payoff plate with adjustable core Central spindle with cone for drum payoff Electric brake for end-of-measurement stop COILER: variable speed; complete with shim for loading with forklift. UNCOILER: complete with shim for loading with forklift and tensioning brake. COUNTER: complete with length programmer, accommodates cable diameter MAX. Ø100mm. standard voltage 220V Available with measuring devices for cables MAX. Ø60 and MAX. Ø30 Machine height (mm) - 1400 mm Machine width (mm) - 2200 mm Machine length (mm) - 785 mm Weight (kg) - 300 kg Total power (kW) - 0.35 KW Min./max. rpm (rpm at coil) - 0-70/min Coiler - Plate diameter (mm) - 700 mm Coiler - Plate height (mm) - 160 mm Coiler - Max. coil core diameter (mm) - 50 mm Coiler - Min. coil core diameter (mm) - 50 mm Uncoiler - Plate diameter (mm) - 700 mm Uncoiler - plate height (mm) - 160 mm Uncoiler - Max. coil core diameter (mm) - 300 mm Uncoiler - Min. coil core diameter (mm) - 100 mm Load capacity (kg) - 100 kg
