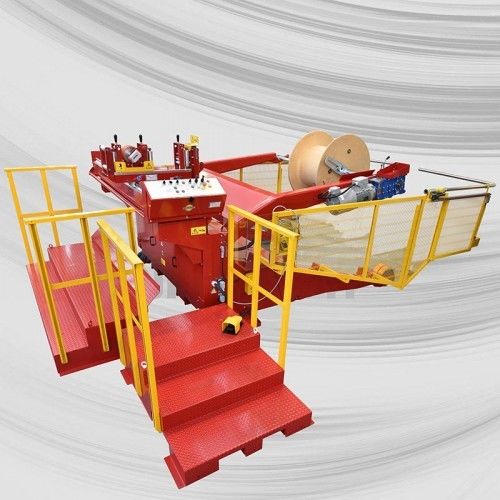

Cable winder CD100-M3

motorized

Weight capacity 10000 kg - Drums min.Ø 800mm max.Ø 3000mm LOW PERFORMANCE - max. 10 operations a day CE-approved safety guards fitted for protection. Electro-hydraulic lifting. VULKOLLAN wheels (two wheels and two castors). Electro-hydraulic parking jacks. Rack-operated drum locking shaft. AC variable-speed winding unit, continuous speed adjustment 0-50 rpm. Supply voltage 380 V three phase (to be confirmed at order stage) Machine height (mm) - 1800 mm Machine width (mm) - 2600 mm Machine length (mm) - 3323 mm Length with guards on (mm) - 4163 mm Empty weight (kg) - 1500 kg Drums - maximum diameter (mm) - 3000 mm Drums - minimum diameter (mm) - 800 mm Drums - Maximum width (mm) - 2000 mm Drums - Minimum width (mm) - 350 mm Drums- Max. weight capacity (kg) - 10000 kg Total power (kW) - 11 KW Torque - 2400 nm Machine movement speed 4 kmh Min./max. rpm (rpm at drum) - 0-50/min
