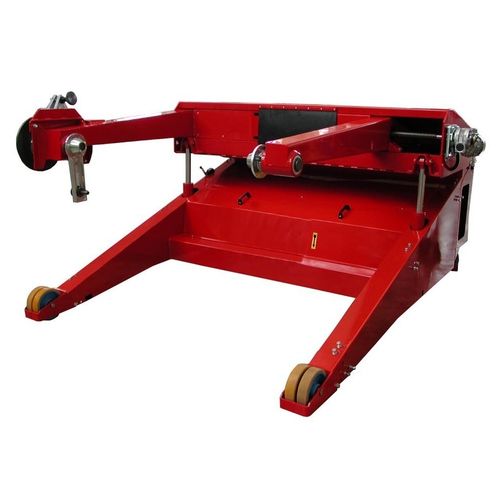

Cable drum unwinder CD-100-BM2/SE1/ST-EL/BI/FM-1-350motorizedfor heavy loadswith movable arms
Add to favorites
Compare this product
Characteristics
- Type
- cable drum
- Operation
- motorized
- Other characteristics
- for heavy loads, with movable arms
- Roll diameter
Max.: 3,000 mm
(118.11 in)Min.: 800 mm
(31.5 in)
Description
MEDIUM PERFORMANCE - More than 30-40 operations a day on average
Independent arms with separate opening and closing operation, motor driven.
Electro-hydraulic lifting.
VULKOLLAN wheels. (two wheels and two castors).
Electro-hydraulic front parking jacks.
CE-approved safety guards fitted for protection.
Supply voltage 380 V (to be confirmed at order stage)
Machine height (mm) - 1400 mm
Machine width (mm) - 2720 mm
Machine length (mm) - 3080 mm
Length with guards on (mm) - 3700 mm
Empty weight (kg) - 2000 kg
Drums - Maximum width (mm) - 2000 mm
Drums - Minimum width (mm) - 490 mm
Drums- Max. weight capacity (kg) - 10000 kg
Total power (kW) - 4 KW
Machine movement speed - 4 km/h
