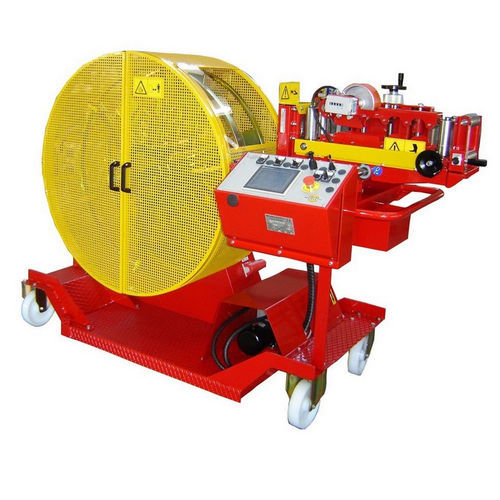

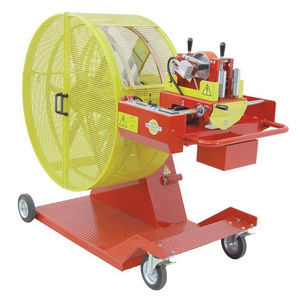

Coil winder OE-VE

automatic

HIGH PERFORMANCE - More than 30-40 operations a day on average CE-approved safety guards fitted for protection. Wheels for easy handling: two wheels and two castors. Centralized controls on side in ergonomically safe location. Pushbutton-operated electronic variable-speed winding unit, 0 - 70 rpm (with manual boost), with automatic return to minimum speed. Supply voltage 220V single phase (to be confirmed at order stage). Collapsible coiling head Electronic programmer/counter Electro-hydraulic shears Machine height (mm) - 1500 mm Machine width (mm) - 1000 mm Machine length (mm) - 1900 mm Empty weight (kg) - 233 kg Coils - max. internal core diameter (mm) - 520 mm Coils - min. internal core diameter (mm) - 320 mm Coils - maximum width (mm) - 220 mm Coils - minimum width (mm) - 120 mm Coils - max. diameter (mm) - 950 mm Total power (kW) - 1.1 KW Torque - 118 Nm Min./max. rpm (rpm at drum) - 0-70 g/min
