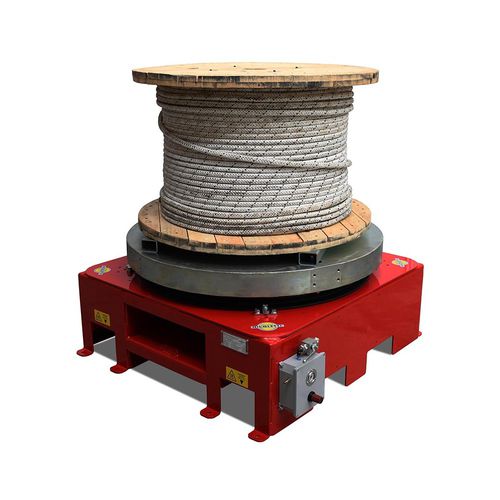

Cable drum unwinder SVI/FR/20manualwith shaft
Add to favorites
Compare this product
Characteristics
- Type
- cable drum
- Operation
- manual
- Other characteristics
- with shaft
- Roll diameter
Min.: 600 mm
(23.62 in)Max.: 1,250 mm
(49.21 in)
Description
HIGH PERFORMANCE
For reels Ø 600-1250mm with arbor hole placed in vertical position
Capacity 2000 kg
Air-operated brake, pulling adjusted by pressure.
Tensioning by disc brake Ø250mm
Pressure adjustment from 0 to 6 ATM
Braking release by actuating the release valve
Possibility of moving with forklift or pallet truck
Floor fixing brackets
Machine height (mm) - 1000 mm
Machine width (mm) - 1200 mm
Machine length (mm) - 1200 mm
Empty weight (kg) - 500 kg
Drums - Maximum width (mm) - 810 mm
Drums- Max. weight capacity (kg) - 2000 Kg
Reel holder against falling down - Ø 1400 mm
