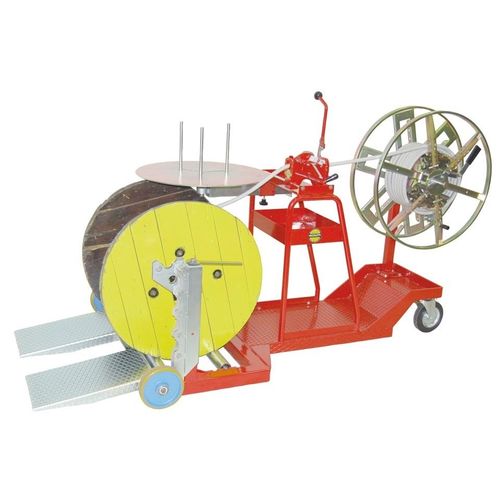

Cable coiler ASB-1

coilmanualmobile

Drum-to-coil and coil-to-coil rewinder For low workloads Coiling head Ø800 Self-locking wheels (two wheels and two castors). Cable measuring device max. Ø 35mm. Manual cutter max. Ø 15mm. Measuring accuracy ±1.5% on coated round cables. Machine is hand operated. Machine height (mm) - 1114 mm Machine width (mm) - 1160 mm Machine length (mm) - 2163 mm Weight (kg) 250 kg Coiling head - max. coil core diameter (mm) - 620 mm Coiling head - min. coil core diameter (mm) - 320 mm Coiling head - max. coil width (mm) - 220 mm Coiling head - min. coil width (mm) - 115 mm Payoff - Max. drum diameter (mm) - 1200 mm Payoff - Min. drum diameter (mm) - 600 mm Payoff - Max. drum capacity - 1500 kg Uncoiler - Plate diameter (mm) - 700 mm Uncoiler - Max. coil core diameter (mm) - 320 mm Uncoiler - Min. coil core diameter (mm) - 80 mm Uncoiler - Coil height (mm) - 250 mm Load capacity (kg) - 250 kg
