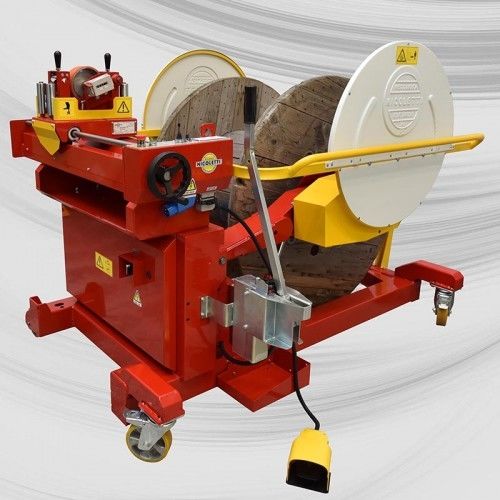

Cable winder BOB-MAT-U12-BA
automatic

cable winder
cable winder
Add to favorites
Compare this product


Characteristics

Product application
cable
Other characteristics
automatic

Description

LOW PERFORMANCE - max. 20 operations a day on average • Manual pump hydraulic lifting • Vulkollan wheels. (two wheels and two castors) • Fixed toothed drum shaft, drum locking with rack-operated moveable cone • Pushbutton-operated electronically controlled variable speed 0/70 rpm (without manual potentiometer) with automatic return to minimum speed • Supply voltage 220/380 V single phase • CE-approved safety guards fitted for protection. Machine height (mm) - 1500 mm Machine width (mm) - 1550 mm Machine length (mm) - 2300 mm Empty weight (kg) - 500 kg Drums - maximum diameter (mm) - 1250 mm Drums - minimum diameter (mm) - 600 mm Drums - Maximum width (mm) - 810 mm Drums - Minimum width (mm) - 300 mm Drums- Max. weight capacity (kg) - 1300 Kg Total power (kW) - 1,1 KW Torque - 274 nm Machine movement speed - 4 Km/h Min./max. rpm (rpm at drum) - 0-70/min
