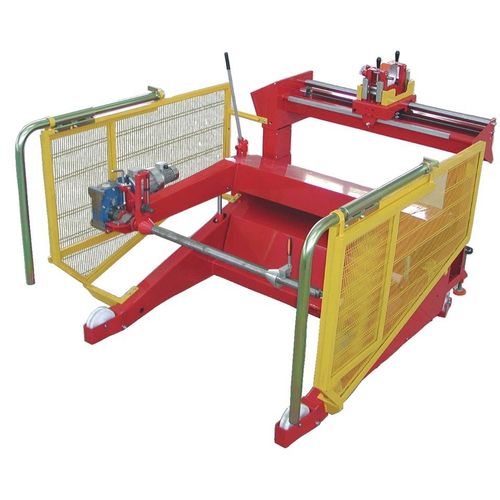

Cable winder CD22-M3

Weight capacity 4000 kg - Drums min. Ø 800mm max. Ø 2200mm LOW PERFORMANCE - max. 10 operations a day on average CE-approved safety guards fitted for protection. Electro-hydraulic lifting. VULKOLLAN wheels (two wheels and two castors). Electro-hydraulic front parking jacks. Rack-operated drum locking shaft. AC variable-speed winding unit, continuous speed adjustment 0-70 rpm. Supply voltage 380 V three phase (to be confirmed at order stage) Machine height (mm) - 1700 mm Machine width (mm) - 2600 mm Length with guards on (mm) - 4100 mm Empty weight (kg) - 650 kg Drums - maximum diameter (mm) - 2200 mm Drums - minimum diameter (mm) - 800 mm Drums - Maximum width (mm) - 1350 mm Drums - Minimum width (mm) - 300 mm Drums- Max. weight capacity (kg) - 4000 kg Total power (kW) - 3.0 KW Torque - 843 nm Machine movement speed - 4 km/h Min./max. rpm (rpm at drum) - 0-70/min
