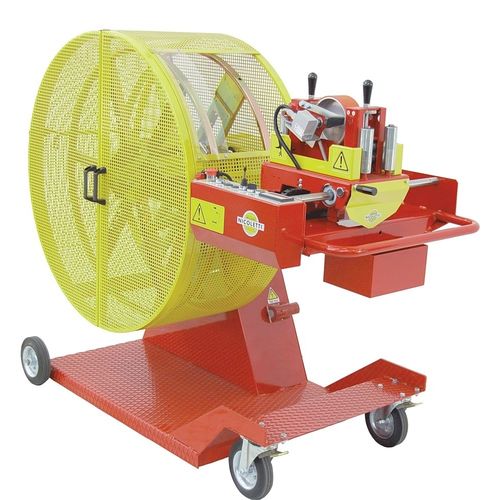

Coil winder OE-VE series

automaticmotorized

LOW PERFORMANCE - max. 20 operations a day on average CE-approved safety guards fitted for protection. Wheels for easy handling: two wheels and two castors. Centralized controls on side in ergonomically safe location. Pushbutton-operated electronic variable-speed winding unit, 0-70 rpm (with manual boost), with automatic return to minimum speed. Voltage 220V single phase, option of 380V three-phase power supply (specify when ordering) Please feel free to contact our staff for additional technical information and queries regarding operation Machine height (mm) - 1500 mm Machine width (mm) - 1000 mm Machine length (mm) - 1900 mm Empty weight (kg) - 233 kg Coils - max. internal core diameter (mm) - 620 mm Coils - min. internal core diameter (mm) - 320 mm Coils - maximum width (mm) - 220 mm Coils - minimum width (mm) - 120 mm Coils - max. diameter (mm) - 950 mm Total power (kW) - 1.1 KW Torque - 118 Nm Min./max. rpm (rpm at drum) - 0-70 g/min
