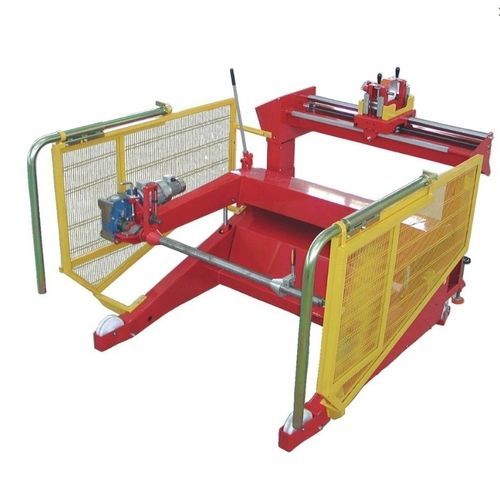

Coil winder CD-22-M3/OA10Q60/SE1/TC-1-60/ST-EL

HIGH PERFORMANCE - max. 20 operations a day on average CE-approved safety guards fitted for protection. Machine with electro-hydraulic lifting. VULKOLLAN wheels (two wheels and two castors). Electro-hydraulic jacks and shears. Rack-operated drum locking shaft. AC variable-speed winding unit, continuous speed adjustment 0-70 rpm. Supply voltage 380 V three phase (to be confirmed at order stage) Machine height (mm) - 1700 mm Machine width (mm) - 2600 mm Length with guards on (mm) - 4100 mm Empty weight (kg) - 650 kg Drums - maximum diameter (mm) - 2200 mm Drums - minimum diameter (mm) - 800 mm Drums - Maximum width (mm) - 1350 mm Drums - Minimum width (mm) - 300 mm Drums- Max. weight capacity (kg) - 4000 kg Total power (kW) - 6.0 KW Torque - 843 nm Machine movement speed - 4 km/h Min./max. rpm (rpm at drum) - 0-70/min
