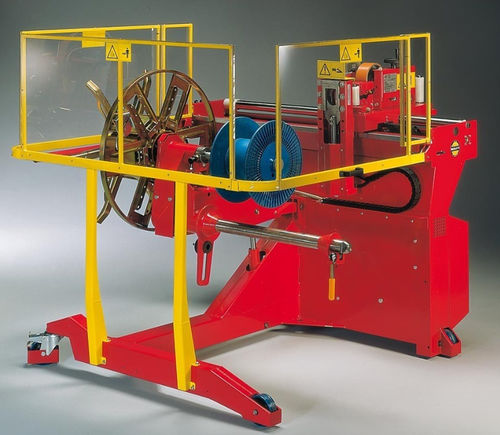

Coil winder BOB-MAT-MF-BA

automatic

LOW PERFORMANCE - max. 20 operations a day on average • Manual pump hydraulic lifting • Vulkollan wheels. (two wheels and two castors) • Fixed toothed drum shaft, drum locking with rack-operated moveable cone • Coiling head permanently attached • Pushbutton-operated electronically controlled variable speed 0/70 rpm (without manual potentiometer) with automatic return to minimum speed • Dual controls (coiling head side and drum side). • Supply voltage 220/380 V single phase • Built-in coiling head Ø 1000mm • CE-approved safety guards fitted for protection. Machine height (mm) - 1500 mm Machine width (mm) - 2000 mm Machine length (mm) - 1800 mm Empty weight (kg) - 400 kg Drums - maximum diameter (mm) - 1000 mm Drums - minimum diameter (mm) - 600 mm Drums - Maximum width (mm) - 710 mm Drums - Minimum width (mm) - 300 mm Drums- Max. weight capacity (kg) - 700 Kg Coils - max. internal core diameter (mm) - 620 mm Coils - min. internal core diameter (mm) - 320 mm Coils - maximum width (mm) - 220 mm Coils - minimum width (mm) - 115 mm Coils - max. diameter (mm) - 950 mm Max. coil weight - 250 kg Total power (kW) - 1,1 KW Torque - 274 Nm Machine movement speed - 4 Km/h Min./max. rpm (rpm at drum) - 0-70 g/min
