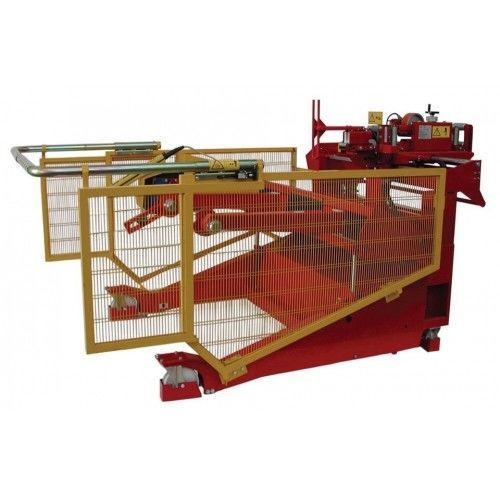

Coil winder CD-15/M3/BM

motorized

Weight capacity 3000 kg - Drums min. Ø 600mm max. Ø 1600mm LOW PERFORMANCE - max. 20 operations a day on average Lifting arms CE-approved safety guards fitted for protection. Electro-hydraulic lifting. NYLON wheels (two wheels and two castors). Electro-hydraulic parking jacks. AC variable-speed winding unit, continuous speed adjustment 0-70 rpm. Supply voltage 380 V three phase (to be confirmed at order stage) Machine height (mm) - 1600 mm Machine width (mm) - 2200 mm Length with guards on (mm) - 2850 mm Empty weight (kg) - 740 kg Drums - maximum diameter (mm) - 1600 mm Drums - minimum diameter (mm) - 600 mm Drums - Maximum width (mm) - 1130 mm Drums - Minimum width (mm) - 390 mm Drums- Max. weight capacity (kg) - 3000 kg Total power (kW) - 3.7 KW Torque - 421 Nm Machine movement speed - 4 kmh Min./max. rpm (rpm at drum) - 0-70 g/min
