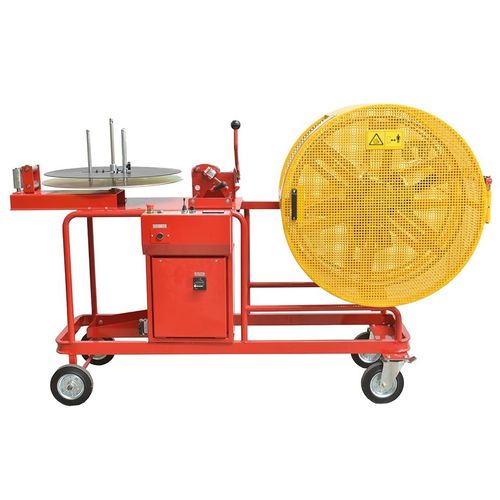

Motorized coiler ASM-16/V/OE800
cablecoilmobile

motorized coiler
motorized coiler
motorized coiler
Add to favorites
Compare this product


Characteristics

Operation
motorized
Applications
cable, coil
Other characteristics
mobile

Description

Motorized coil-to-coil rewinder LOW PERFORMANCE - For low workloads Coiling head Ø800 Self-locking wheels (two wheels and two castors). Cable measuring device max. Ø 35mm. Manual cable cutter Ø 15mm. Measuring accuracy ±1.5% on coated round cables. Supply voltage 220 V single phase. CE-approved safety guards fitted for protection. Motorized variable-speed machine. With anti-tangling coil compression plate Technical data sheet Machine height (mm) - 1114 mm Machine width (mm) - 750 mm Machine length (mm) - 1700 mm Weight (kg) - 136 kg Total power (kW) - 0.37 KW Coiling head - max. coil core diameter (mm) - 620 mm Coiling head - min. coil core diameter (mm) - 320 mm Coiling head - max. coil width (mm) - 220 mm Coiling head - min. coil width (mm) - 115 mm Uncoiler - Plate diameter (mm) - 700 mm Uncoiler - Max. coil core diameter (mm) - 320 mm Uncoiler - Min. coil core diameter (mm) - 80 mm Uncoiler - Coil height (mm) - 250 mm Load capacity (kg) - 250 kg
