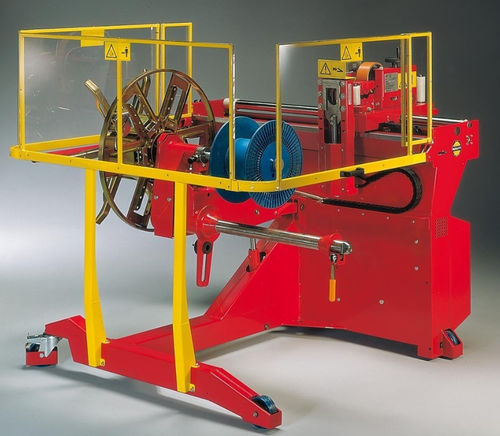

HIGH PERFORMANCE - More than 30-40 operations a day on average
Electro-hydraulic lifting
Vulkollan wheels. (two wheels and two castors)
Fixed toothed drum shaft, drum locking with rack-operated moveable cone
Coiling head permanently attached
Pushbutton-operated electronically controlled variable speed 0/70 rpm (without manual potentiometer) with automatic return to minimum speed
Dual controls (coiling head side and drum side).
Machine capable of operating unattended
Supply voltage 380 V three phase (to be confirmed at order stage).
Built-in coiling head Ø 1000mm
Electro-hydraulic shears
CE-approved safety guards fitted for protection.
Machine height (mm) - 1500 mm
Machine width (mm) - 2100 mm
Machine length (mm) - 2300 mm
Empty weight (kg) - 600 kg
Drums - maximum diameter (mm) - 1250 mm
Drums - minimum diameter (mm) - 600 mm
Drums - Maximum width (mm) - 810 mm
Drums - Minimum width (mm) - 300 mm
Drums- Max. weight capacity (kg) - 1300 Kg
Coils - max. internal core diameter (mm) - 520 mm
Coils - min. internal core diameter (mm) - 320 mm
Coils - maximum width (mm) - 200 mm
Coils - minimum width (mm) - 90 mm
Coils - max. diameter (mm) - 950 mm
Max. coil weight - 250 kg
Total power (kW) - 2 KW
Torque - 274 Nm
Machine movement speed - 4 km/h
Min./max. rpm (rpm at drum) - 0-70 g/min
