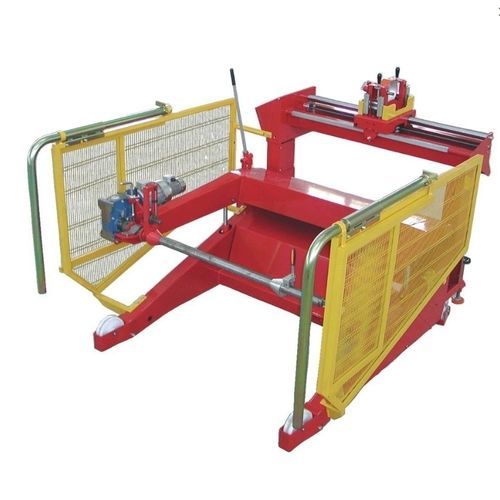

Coil winder CD-15-M3/SE1/TC-1-60/OA10Q60

HIGH PERFORMANCE - max. 20 operations a day on average CE-approved safety guards fitted for protection. Machine with shears and electro-hydraulic lifting. NYLON wheels (two wheels and two castors). Electro-hydraulic jacks and shears. Rack-operated drum locking shaft. AC variable speed winding unit, continuous speed adjustment 0-70 rpm. Supply voltage 380 V three phase (to be confirmed at order stage) Machine height (mm) - 1700 mm Machine width (mm) - 2200 mm Machine length (mm) - 2300 mm Length with guards on (mm) - 2850 mm Empty weight (kg) - 555 kg Drums - maximum diameter (mm) - 1600 mm Drums - minimum diameter (mm) - 600 mm Drums - Maximum width (mm) - 1150 mm Drums - Minimum width (mm) - 300 mm Drums- Max. weight capacity (kg) - 3000 kg Total power (kW) - 3.3 KW Torque - 421 nm Machine movement speed - 4 km/h Min./max. rpm (rpm at drum) - 0-70/min
