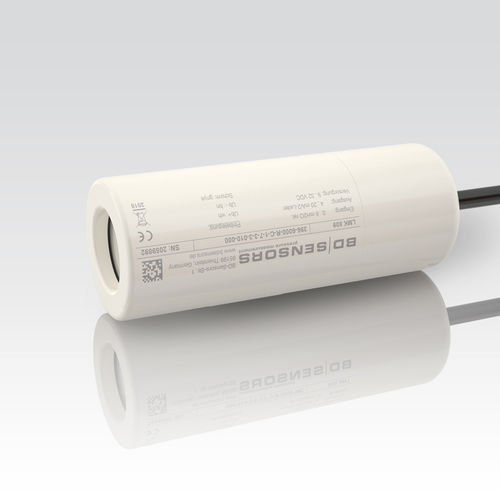

Hydrostatic level sensor LMK 809
for waterfor wastewaterfor corrosive liquids

hydrostatic level sensor
hydrostatic level sensor
Add to favorites
Compare this product


Characteristics

Technology
hydrostatic
Medium
for water, for wastewater, for corrosive liquids, for high-viscosity liquids, for aggressive liquids
Interface
not specified
Applications
for corrosive environments
Other characteristics
ultra-rugged, submersible, chemical-resistant, programmable, temperature-compensated, PVC, IP68
Level range

Max.: 100 m
(328'01" )

Min.: 0.4 m
(1'03" )

Process pressure

Max.: 10,000 mbar
(145.04 psi)

Min.: 40 mbar
(0.58 psi)

Process temperature

Max.: 100 °C
(212 °F)

Min.: -25 °C
(-13 °F)

Description

The plastic submersible probe LMK 809 is designed for continous level measurement in waste water or in most of aggressive media. Basic element is a capacitiv ceramic sensor. Basic element of the plastic probe is the flush mounted ceramic sensor, which makes cleaning easier when solid parts of the medium deposit on it. Different cable and seal materials are available in order to achieve maximum media compatibility. Features: - nominal pressure: 0 ... 40 cmH2O up to 0 ... 100 mH2O - accuracy: 0.35 % (opt. 0.25 %) FSO - diameter 45 mm - chemical resistance - high overpressure capability - pure ceramic sensor - especially for tank level measurement of viscous and aggressive media - housing material PP-HT or PVDF - diaphragm ceramics Al2O3 (99.9 %) Optional Features: - different kinds of cable and seal materials - prepared for mounting with pipe
