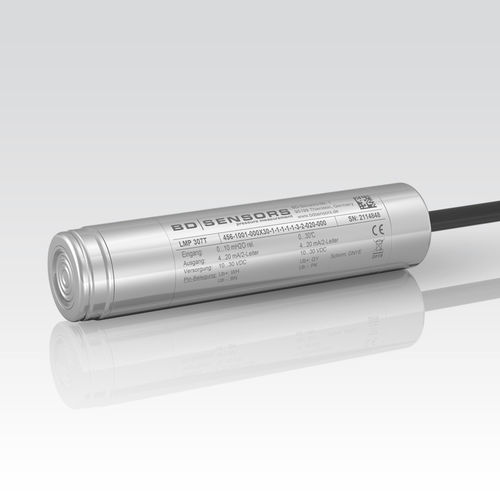

hydrostatic level sensor / compact / with temperature sensor / submersible
LMP 307T

{{requestButtons}}

Characteristics

  • Technology:

    hydrostatic

  • Other characteristics:

    compact, with temperature sensor, submersible

  • Process pressure:

    Max.: 25 bar (362.59 psi)

    Min.: 0.1 bar (1.45 psi)

  • Process temperature:

    Max.: 70 °C (158 °F)

    Min.: -10 °C (14 °F)

Description

BD|SENSORS has developed the LMP 307T for continuous level and temperature measurement . The advantage: simultaneous recording of level and temperature with separate independent signal amplification. The maintenance and wiring costs are con-siderably reduced.

In addition to classical signal processing of the level, an additional signal circuit independent of the level which converts the temperature signal into a 4 … 20 mA analogue signal in 2-wire technology is provided.

Features:
- nominal pressure: 0 ... 1 mH2O up to 0 ... 250 mH2O
- nominal temperature from 0 ... 30 °C up to 0 ... 70 °C
- accuracy: 0.25 % / 0.35 % FSO
- diameter 27 mm
- separate output signals for pressure and temperture ranges
- easy handling
- low maintenance and wiring costs

Optional Features:
- Drinking water certificate acc. to DVGW and KTW
- different kinds of cables
- different kinds of elastomers
- customer specific versions
