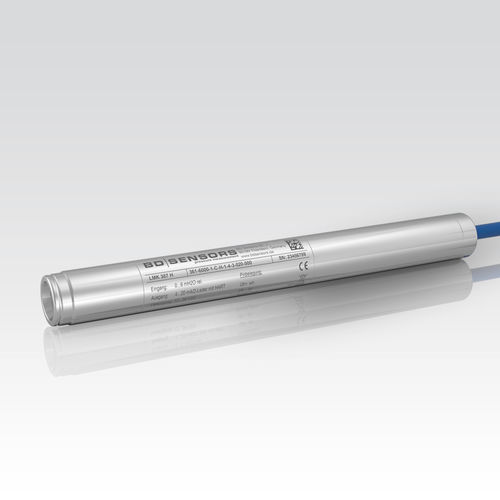

Hydrostatic level sensor LMK 387H
for liquidsnot specifiedfor fill monitoring

hydrostatic level sensor
hydrostatic level sensor
Add to favorites
Compare this product


Characteristics

Technology
hydrostatic
Medium
for liquids
Interface
not specified
Applications
for fill monitoring, for OEM, for industrial applications, for hazardous areas, river
Other characteristics
stainless steel, IECEx, temperature-compensated, IP68
Level range

Max.: 100 m
(328'01" )

Min.: 1 m
(3'03" )

Process temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

The stainless steel probe LMK 387H was developed for level and gauge measurement in wastewater, sludge or water courses. The mechanical robustness of the flush ceramic diaphragm facilitates an easy disassembly and cleaning of the probe in case of service. The outer diameter is only 22 mm, whereby the installation or retrofitting can be easily carried out in 1 "pipes or in confined installation conditions. In addition to an intrinsically safe version (zone 0), a version with temperature signal is available. Features: -nominal pressure: from 0 … 1 mH2O up to 0 … 100 mH2O -accuracy: 0.35 % (opt. 0.25 %) FSO -diameter 22 mm -HART® communication (setting of offset, span and damping) -diaphragm ceramics 99,9% Al2O3 -especially for waste water Optional features: - IS-version Ex ia = intrinsically safe for gas and dust - housing material titanium - temperature element Pt 100 - different kinds of elastomer
