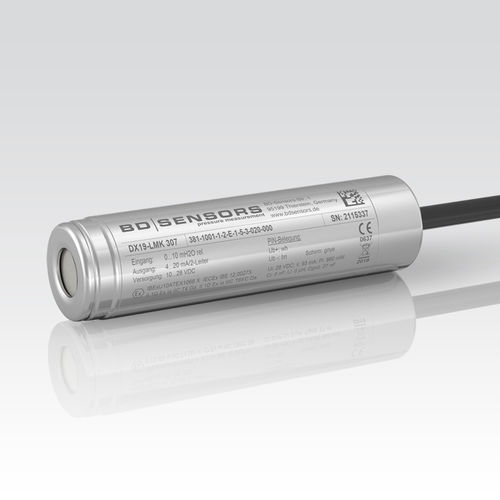

Hydrostatic level sensor LMK 307
for waterfor fuelfor oil

hydrostatic level sensor
hydrostatic level sensor
Add to favorites
Compare this product


Characteristics

Technology
hydrostatic
Medium
for water, for fuel, for oil, for wastewater, for sludge
Interface
not specified
Applications
for storage tanks, for fill monitoring, fuel tank, for the food industry, for OEM, rugged, for CSO monitoring, for small access holes, for double-walled tanks
Other characteristics
stainless steel, submersible, programmable, intrinsically safe, IECEx, temperature-compensated, IP68
Process pressure

Min.: 0.4 bar
(5.8 psi)

Max.: 25 bar
(362.59 psi)

Process temperature

Min.: -10 °C
(14 °F)

Max.: 70 °C
(158 °F)

Description

The level transmitter LMK 307 is designed for continuous level measurement in water or waste water applications. Basic element is a flush mounted ceramic sensor. Suitable for all fluids which are compatible with media wetted materials. Different cable and elastomer matierals can be offered according to the customer-specific operating conditions. Features: - nominal pressure: 0 ... 4 mH2O up to 0 ... 250 mH2O - accuracy: 0.5 % FSO - diameter 27 mm - excellent linearity - excellent accuracy - easy handling Optional Features: - IS-version - SIL 2 (safety integrity level) according to IEC 61508 / IEC 61511 - different kinds of cables and elastomeres - customer specific versions e.g. special pressure ranges
