Hydrostatic level sensor LMP 305for waterfor fill monitoringfor OEM
Add to favorites
Compare this product
Characteristics
- Technology
- hydrostatic
- Medium
- for water
- Applications
- for fill monitoring, for OEM, for basin, for small access holes
- Other characteristics
- stainless steel, compact, submersible, temperature-compensated, miniature, IP68
- Level range
Max.: 25 dam
(820'02" )Min.: 1 dam
(32'09" )- Process pressure
Max.: 25 bar
(362.59 psi)Min.: 0.1 bar
(1.45 psi)- Process temperature
Max.: 70 °C
(158 °F)Min.: -10 °C
(14 °F)
Description

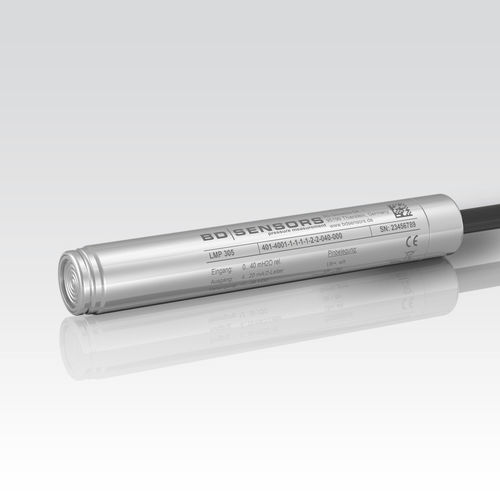

The slimline probe LMP 305 with silicon stainless steel sensor is designed for continous level measurement in confined space conditions. Permissible media are clean or waste water and thin fluids.
A piezoresistiv stainless steel sensor with low thermal error, an excellent linearity and a long term stability, is basis of LMP 305.
Features:
- accuracy: 0,35 % (opt. 0,25 %) FSO
- diameter 19 mm for cramped areas e.g. 1" observation well
- small thermal effect
- excellent linearity
- excellent long term stability
Optional Features:
- different kinds of cable
- customer specific versions e.g. special pressure ranges
Catalogs
data sheet LMP 305
5 Pages
