Hydrostatic level sensor LMK 382H
for waterfor oilfor wastewater

hydrostatic level sensor
hydrostatic level sensor
Add to favorites
Compare this product


Characteristics

Technology
hydrostatic
Medium
for water, for oil, for wastewater
Interface
HART
Applications
rugged, for corrosive environments
Other characteristics
stainless steel
Process pressure

Min.: 60 mbar
(0.87 psi)

Max.: 20,000 mbar
(290.08 psi)

Process temperature

Min.: -25 °C
(-13 °F)

Max.: 85 °C
(185 °F)

Description

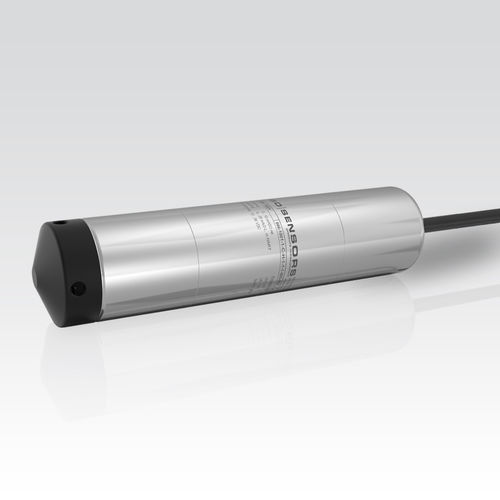

The stainless steel probe LMK 382H has been designed for continous level measurement in waste water, waste and higher viscosity mediums. Basic element is a robust and high overpressure capable capacitive ceramic sensor e.g. for low levels. Features: - nominal pressure range 0 ... 60 cmH2O up to 0 ... 200 mH2O - accuracy: 0.1 % FSO - diameter 39.5 mm - HART®-communication (setting of offset, span and damping) - permissible temperatures up to 85 °C - high overpressure capability - high long term stability Optional Features: - IS-version Ex ia = intrinsically safe for gas and dust - mounting with stainless steel pipe - flange version - diaphragm pure ceramic (99.9 % AI2O3) - accessoires e.g. assembling and probe flange, mounting clamp
