Hydrostatic level sensor LMK 358
for waterfor fuelfor oil

hydrostatic level sensor
hydrostatic level sensor
Add to favorites
Compare this product


Characteristics

Technology
hydrostatic
Medium
for water, for fuel, for oil, for wastewater, for sludge
Interface
analog
Applications
for small tanks, for fill monitoring, fuel tank, for industrial applications, for OEM, for double-walled tanks
Other characteristics
stainless steel, submersible, IECEx, temperature-compensated, IP68
Level range

Max.: 100 m
(328'01" )

Min.: 0.4 m
(1'03" )

Process pressure

Max.: 10 bar
(145.04 psi)

Min.: 0.04 bar
(0.58 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -25 °C
(-13 °F)

Description

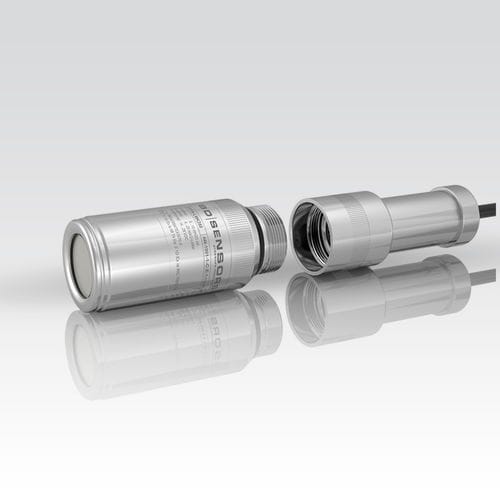

The separable stainless steel probe LMK 358 has been designed for level measurement in waste water, waste and higher viscosity media. Basic element is a capacitive ceramic sensor. In order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembly with a connector and can be changed easily. Features: - nominal pressure: 0 ... 40 cmH2O up to 0 ... 100 mH2O - accuracy: 0.35 % (opt. 0.25 %) FSO - diameter 39.5 mm - cable and sensor section separable - especially for sewage, viscous and pasty media Optional Features: - IS-protection Ex ia = intrinsically safe for gas and dust - cable protection via corrugated pipe - diaphragm pure ceramic (99.9 % AI2O3) - different kinds of cable - different kinds of elastomeres
