Hydrostatic level sensor LMP 308for wateranalogfor fill monitoring
Add to favorites
Compare this product
Characteristics
- Technology
- hydrostatic
- Medium
- for water
- Interface
- analog
- Applications
- for fill monitoring, for industrial applications, for OEM, river
- Other characteristics
- stainless steel, submersible, ATEX, intrinsically safe, IECEx, temperature-compensated, IP68
- Level range
Min.: 1 m
(3'03" )Max.: 250 m
(820'02" )- Process pressure
Min.: 0.1 bar
(1.45 psi)Max.: 25 bar
(362.59 psi)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description

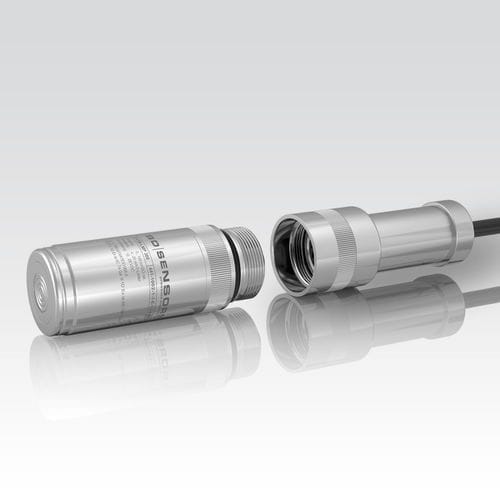

The detachable stainless steel probe LMP 308 is designed for the continually level measurement of water and thin fluids.
In order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembly with a connector and can be changed easily.
Features:
accuracy: 0.35 % (opt. 0.25% / 0.1 %) FSO
diameter 35 mm
cable and sensor section detachable
excellent long term stability
high accuracy
Optional Features:
- IS-version
Ex ia = intrinsically safe for gas and dust
- SIL 2 (Safety integrity level)
- customer specific versions
- mounting accessoires as cable gland and terminal clamp of stainless steel
- different kinds of cables
- different kinds of seal materials
