Level sensor with temperature measurement LMK 307 Thydrostaticfor waterfor fuel
Add to favorites
Compare this product
Characteristics
- Technology
- hydrostatic
- Medium
- for water, for fuel, for oil, for wastewater, for corrosive liquids
- Interface
- 4-20 mA, 2-wire
- Applications
- for storage tanks, for fill monitoring, for the food industry, for industrial applications, for OEM, for basin, high-temperature, for the food and beverage industry, for CSO monitoring, for small access holes
- Other characteristics
- stainless steel, compact, rugged, submersible, with temperature measurement, temperature-compensated, IP68
- Level range
Max.: 250 m
(820'02" )Min.: 4 m
(13'01" )- Process pressure
Max.: 25 bar
(362.59 psi)Min.: 0.4 bar
(5.8 psi)- Process temperature
Max.: 70 °C
(158 °F)Min.: -10 °C
(14 °F)
Description

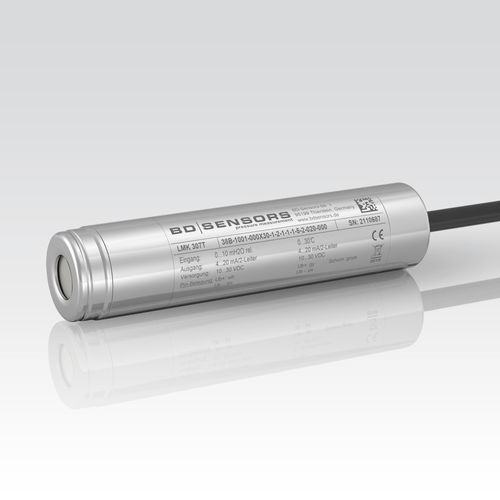

BD|SENSORS has developed the stainless steel submersible probe LMK 307T with flush mounted ceramic sensor for continuous level and temperature measurement in water or waste water applications.
The advantage: simultaneous recording of level and temperature with separate independent signal amplification. The maintenance and wiring costs are considerably reduced.
In addition to classical signal processing of the level, an additional signal circuit independent of the level which converts the temperature signal into a 4 ... 20 mA analogue signal in 2-wire technology is provided.
Features:
- accuracy: 0.5 % FSO
- diameter 27 mm
- separate output signals for pressure and temperture ranges
- excellent accuracy
- easy handling
- low maintenance and wiring costs
Optional Features:
- different kinds of cables
- different kinds of seal materials
- customer specific versions
