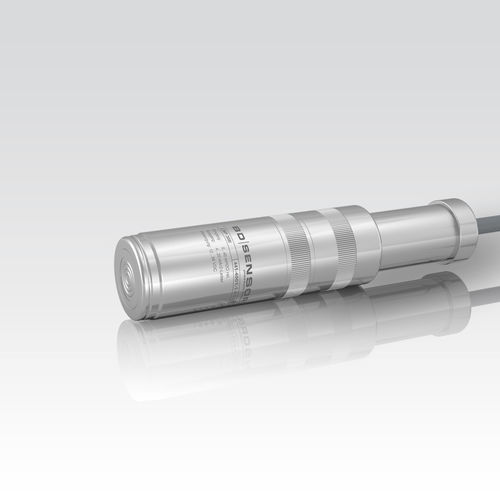

Hydrostatic level sensor LMP 308i
for liquidsnot specifiedfor fill monitoring

hydrostatic level sensor
hydrostatic level sensor
hydrostatic level sensor
hydrostatic level sensor
Add to favorites
Compare this product


Characteristics

Technology
hydrostatic
Medium
for liquids
Interface
not specified
Applications
for fill monitoring, for OEM, for industrial applications, for basin, for hazardous areas, river, for CSO monitoring
Other characteristics
stainless steel, high-precision, submersible, ATEX, intrinsically safe, IECEx, programmable, temperature-compensated, IP68
Level range

Min.: 4 m
(13'01" )

Max.: 200 m
(656'02" )

Process pressure

Min.: 0.4 bar
(5.8 psi)

Max.: 20 bar
(290.08 psi)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

The LMP 308i is designed for continuous fill level and level measurement of water and liquid mediums. The signal processing of sensor signal is done by digital electronics with 16-bit analog digital converter. Consequently it is possible to conduct an active compensation of sensor intrinsic deviations from normal condions like nonlinearity and thermal error. In order to facilitate stock-keeping and maintenance the transmitter body is plugged to the cable assembly with a connector and can be changed easily. Features: - nominal pressure: 0 ...4 mH2O up to 0...200 mH2O - accuracy: 0.1 % FSO - diameter 35 mm - cable and sensor section separable - thermal error in compensated range -20...70°C: 0.2 FSO TC 0.02% FSO/10K 0,02 % FSO / 10K - high accuracy - communication connection - turn-down 1:10 Optional Features: - IS-version - mounting accessories as cable gland and terminal clamp in stainless steel
